STGIPQ8C60T-HZ - STMicroelectronics

Description: IGBT Modules SLLIMM nano 2nd series IPM, 3-phase inverter, 8 A, 600 V short-circuit rugged IGBTs

Download STGIPQ8C60T-HZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

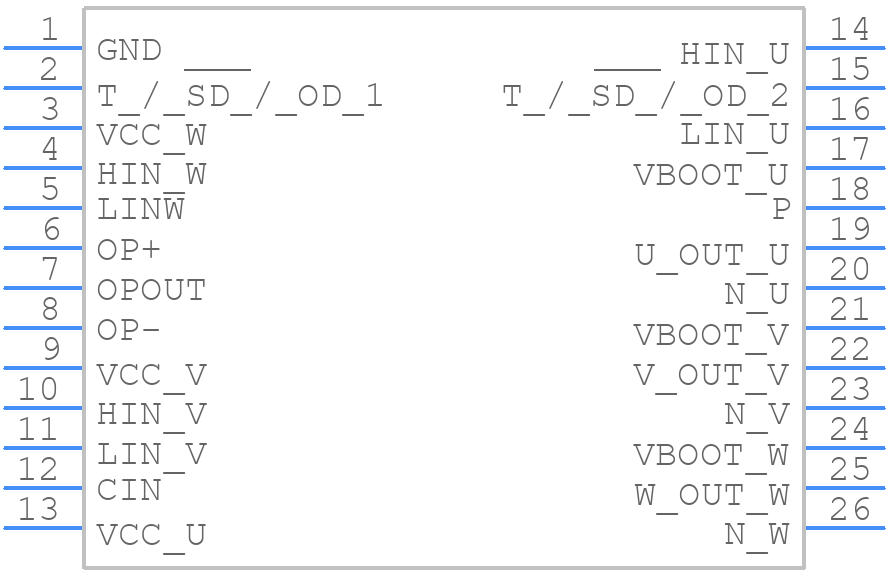

STGIPQ8C60T-HZ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

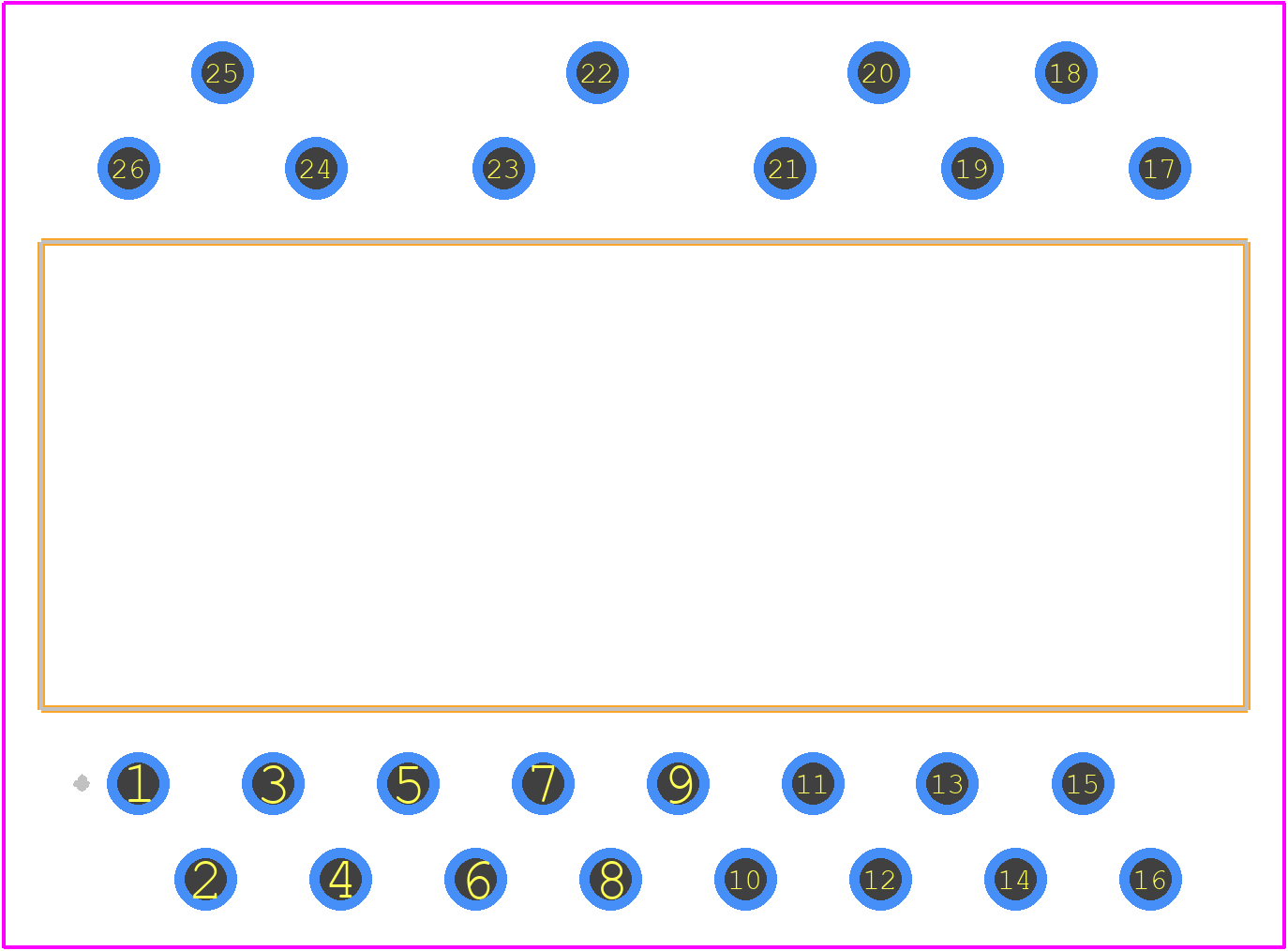

STGIPQ8C60T-HZ - STMicroelectronics PCB footprint - Other - Other - N2DIP-26L type Z
click to zoom
3D Models
STGIPQ8C60T-HZ - STMicroelectronics - 3D model - Other - N2DIP-26L type Z
click to zoom

STGIPQ8C60T-HZ Details

  • Manufacturer Part Number:

    STGIPQ8C60T-HZ

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-26

  • Manufacturer Package Code:

    N2DIP-26L

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T26

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

STGIPQ8C60T-HZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STGIPQ8C60T-HZ is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the STGIPQ8C60T-HZ is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the device, use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a fuse or a current-sensing resistor.
  • The maximum allowable power dissipation for the STGIPQ8C60T-HZ is 150W, but this can be increased with proper heat sinking and thermal management.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPQ8C60T-HZ Overview

Use the download button to access the STGIPQ8C60T-HZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics
