STGIPS10K60A - STMicroelectronics

Description: STMicroelectronics STGIPS10K60A, SDIP Smart Power Module, 10 A max, 600 V, Through Hole

Download STGIPS10K60A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

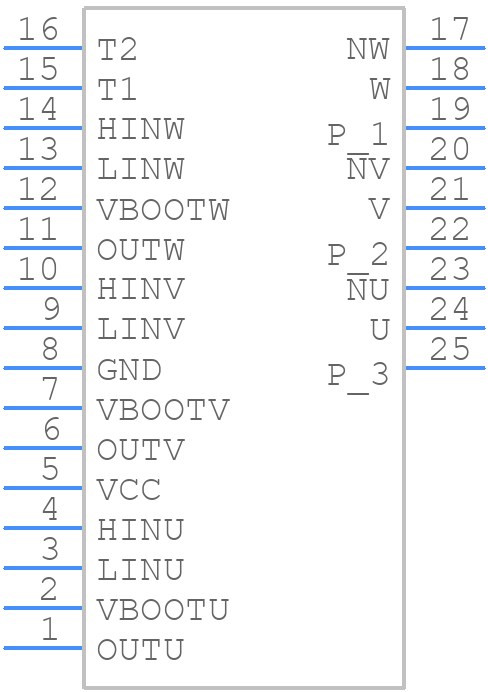

Symbol
STGIPS10K60A - STMicroelectronics - PCB symbol
click to zoom

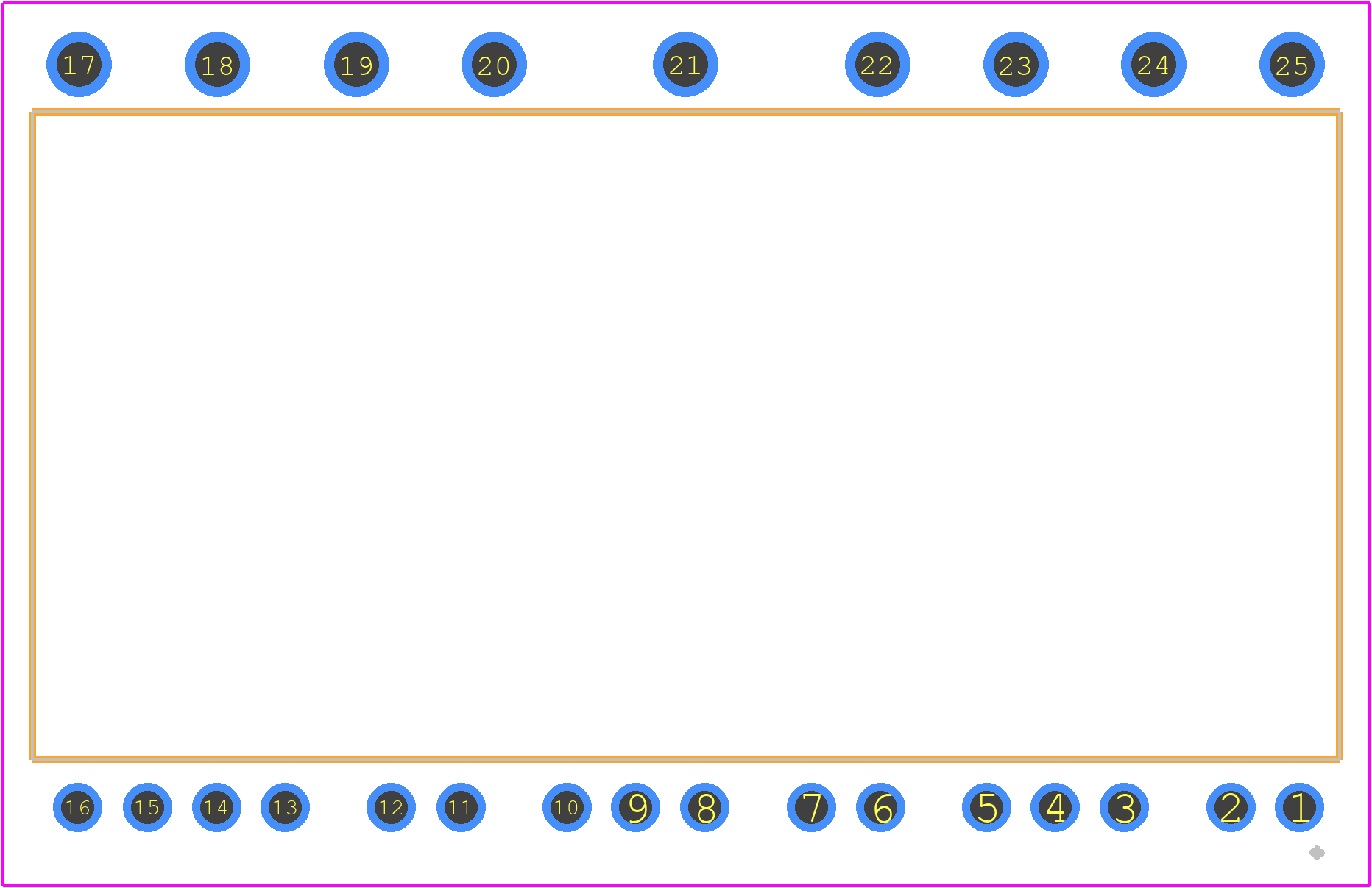

PCB Footprints
STGIPS10K60A - STMicroelectronics PCB footprint - Other - Other - STGIPS10K60A
click to zoom
3D Models
STGIPS10K60A - STMicroelectronics - 3D model - Other - STGIPS10K60A
click to zoom

STGIPS10K60A Details

  • Manufacturer Part Number:

    STGIPS10K60A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    SDIP-25

  • Pin Count:

    25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

STGIPS10K60A Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGIPS10K60A can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 1°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins.
  • The recommended gate resistor value for the STGIPS10K60A is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, the STGIPS10K60A is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability.
  • To protect the STGIPS10K60A from overvoltage and overcurrent, use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage, and a current sense resistor or a fuse to detect and respond to overcurrent conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPS10K60A Overview

Use the download button to access the STGIPS10K60A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics
