STGIPS10K60T-H - STMicroelectronics

Description: SLLIMM small low-loss intelligent molded module IPM, 3-phase inverter, 10 A, 600 V short-circuit rugged IGBT

Download STGIPS10K60T-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

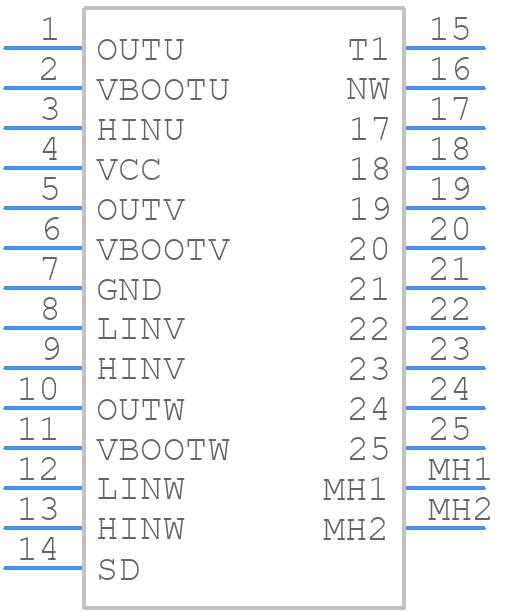

STGIPS10K60T-H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

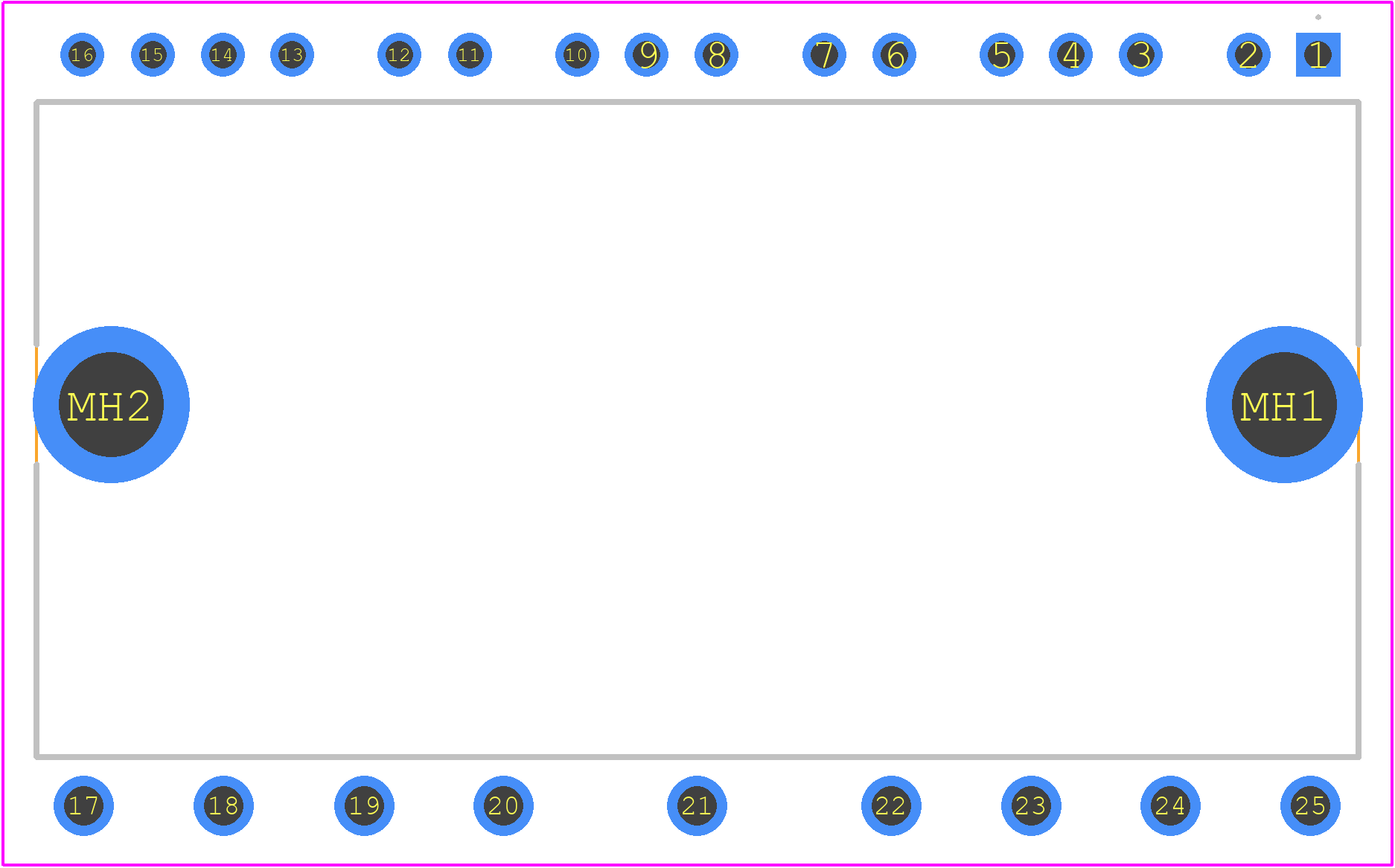

STGIPS10K60T-H - STMicroelectronics PCB footprint - Other - Other - STGIPS10K60T-H-2
click to zoom
3D Models
STGIPS10K60T-H - STMicroelectronics - 3D model - Other - STGIPS10K60T-H-2
click to zoom

STGIPS10K60T-H Details

  • Manufacturer Part Number:

    STGIPS10K60T-H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

STGIPS10K60T-H Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGIPS10K60T-H can withstand is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 1°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins.
  • The recommended gate resistor value for the STGIPS10K60T-H is between 10 ohms and 22 ohms, depending on the specific application and switching frequency.
  • Yes, the STGIPS10K60T-H can be used in a parallel configuration, but it's essential to ensure that the devices are properly matched and that the gate drive signals are synchronized to prevent shoot-through currents.
  • The maximum allowed dv/dt for the STGIPS10K60T-H is 10 kV/μs, as specified in the datasheet. Exceeding this value may cause the device to fail or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPS10K60T-H Overview

Use the download button to access the STGIPS10K60T-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
