STGIPS30C60-H footprint, schematic symbol and 3D model by STMicroelectronics

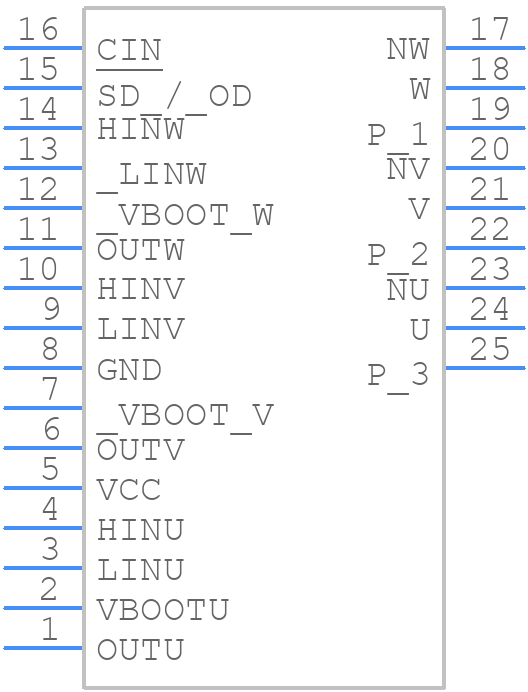

Symbol

click to zoom

PCB Footprints

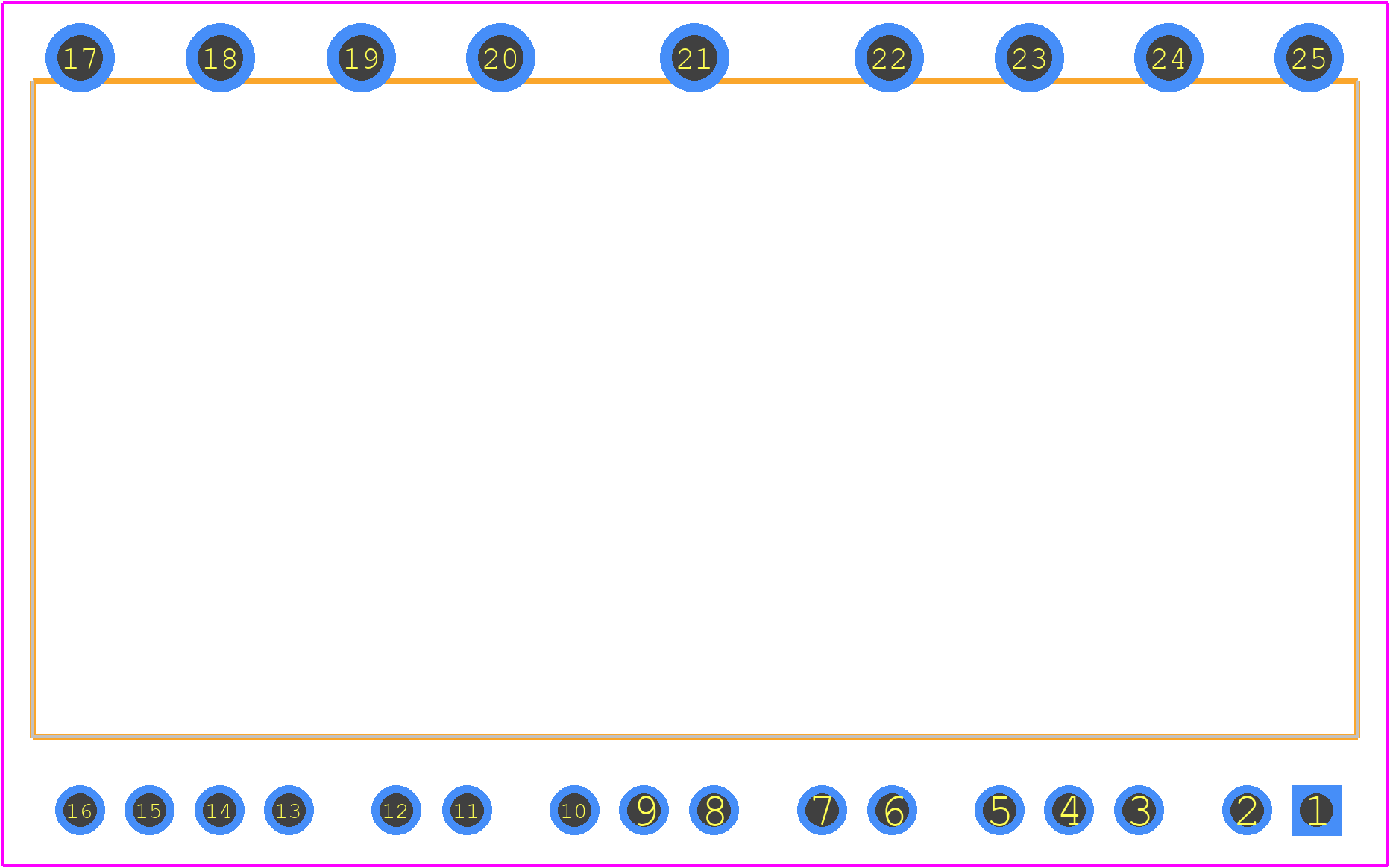

STGIPS30C60-H - STMicroelectronics PCB footprint - Other - Other - SDIP-25L

click to zoom

3D Models

STGIPS30C60-H - STMicroelectronics - 3D model - Other - SDIP-25L

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGIPS30C60-H
Part Number STGIPS30C60-H
Manufacturer STMicroelectronics
Pin Count 25
Part Category Power Supply
Package Category Other
Footprint Name Other - SDIP-25L
Released Date Nov 6, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

STGIPS30C60-H Details

Manufacturer Part Number:
STGIPS30C60-H
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SDIP-25
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Analog IC - Other Type:
AC MOTOR CONTROLLER
JESD-30 Code:
R-PDMA-T25
Length:
44.4 mm
Number of Functions:
1
Number of Terminals:
25
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,25LEAD,1.1
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
7.5 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
13.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Temperature Grade:
AUTOMOTIVE
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
22 mm

STGIPS30C60-H Frequently Asked Questions (FAQs)

The maximum operating temperature range for the STGIPS30C60-H is -40°C to 150°C.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
The recommended gate drive voltage for the STGIPS30C60-H is between 10V and 15V, with a maximum gate-source voltage of ±20V.
To protect the device, use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a fuse or a current-sensing resistor, in conjunction with a protection IC.
The maximum allowable power dissipation for the STGIPS30C60-H is 150W, but this value can be derated based on the operating temperature and other factors.

Trust Checks

Expert Contribution

System Verified

Community Approved

STGIPS30C60-H Overview

Use the download button to access the STGIPS30C60-H schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
