STGIPS30C60T-H - STMicroelectronics

Description: IGBT Modules SLLIMM small low-loss intelligent molded module IPM, 3-phase inverter 30 A, 600 V short-circuit rugged IGBT

Download STGIPS30C60T-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

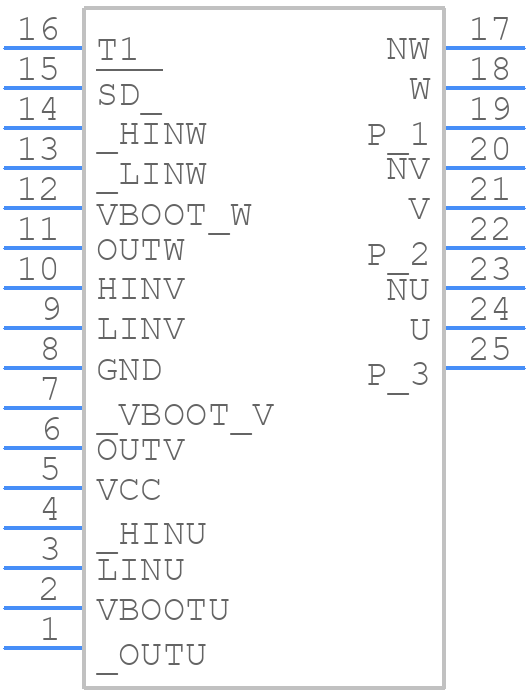

Symbol
STGIPS30C60T-H - STMicroelectronics - PCB symbol
click to zoom

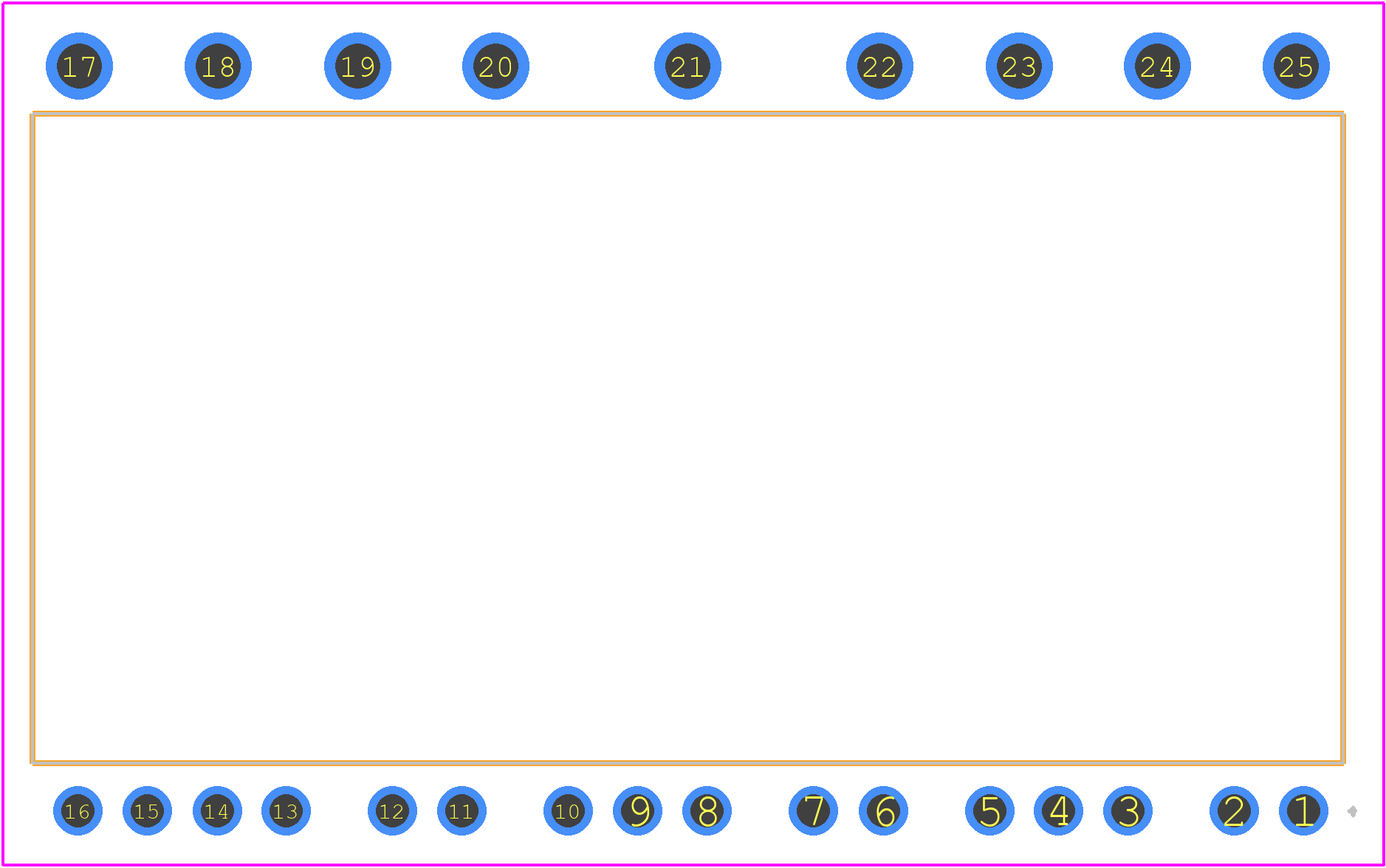

PCB Footprints
STGIPS30C60T-H - STMicroelectronics PCB footprint - Other - Other - STGIPS30C60T-H-2
click to zoom
3D Models
STGIPS30C60T-H - STMicroelectronics - 3D model - Other - STGIPS30C60T-H-2
click to zoom

STGIPS30C60T-H Details

  • Manufacturer Part Number:

    STGIPS30C60T-H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SDIP-25

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T25

  • Length:

    44.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,25LEAD,1.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    7.5 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    22 mm

STGIPS30C60T-H Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STGIPS30C60T-H is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The recommended gate drive voltage for the STGIPS30C60T-H is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the STGIPS30C60T-H, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, and ensure that the device is operated within the recommended voltage and current ratings.
  • The maximum allowable power dissipation for the STGIPS30C60T-H is 150W, but this can be increased with proper heat sinking and thermal management.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGIPS30C60T-H Overview

Use the download button to access the STGIPS30C60T-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGIP, or try a keyword search, such as Motion Control Electronics
