STGSH50M120D footprint, schematic symbol and 3D model by STMicroelectronics

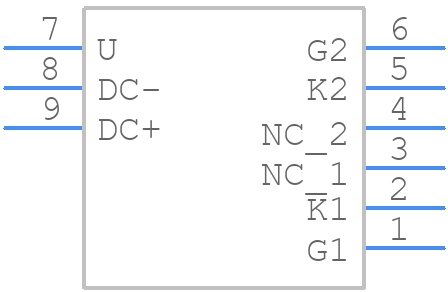

Symbol

click to zoom

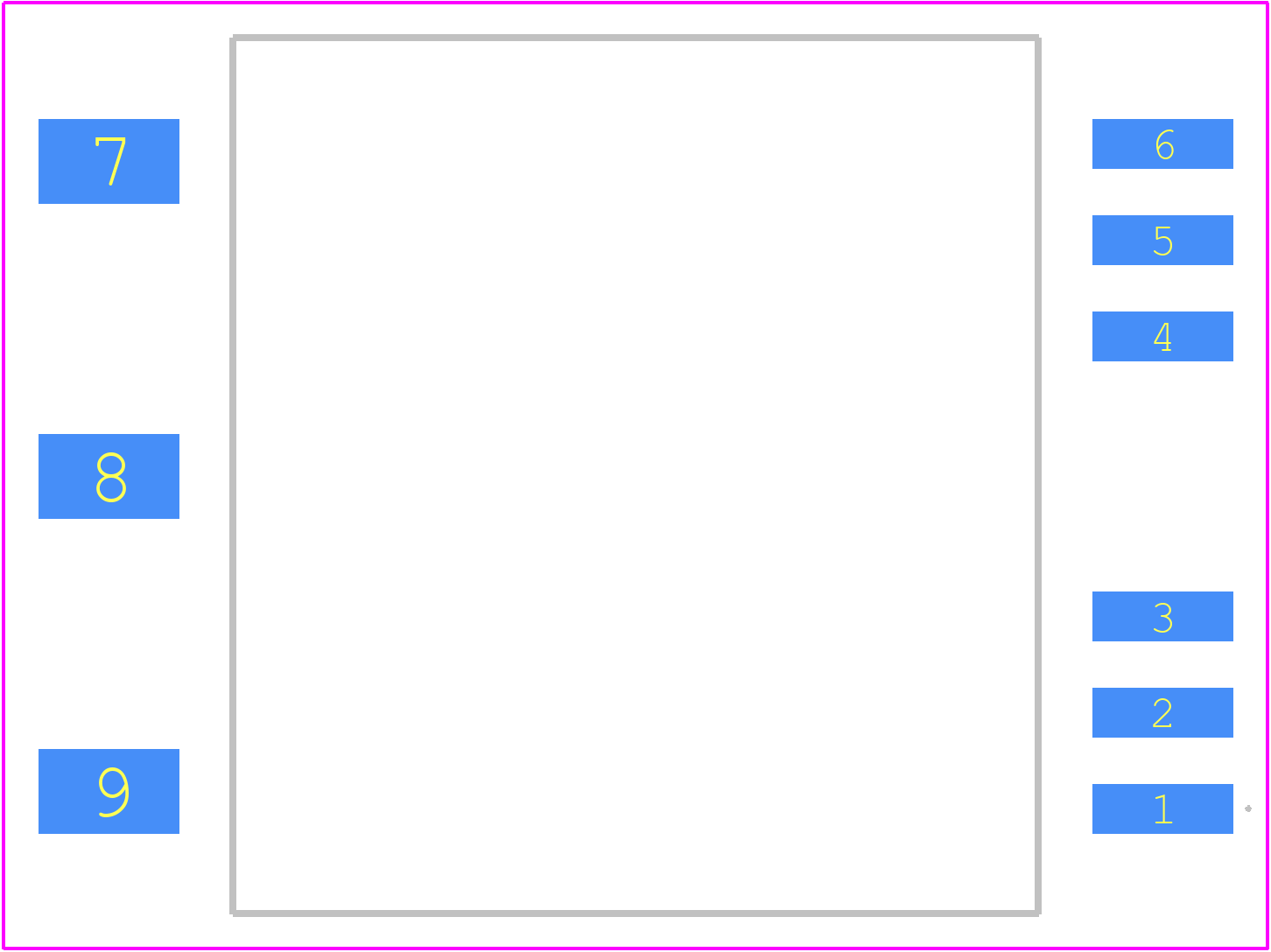

PCB Footprints

STGSH50M120D - STMicroelectronics PCB footprint - Other - Other - 9-PowerSMD_2025-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGSH50M120D
Part Number STGSH50M120D
Manufacturer STMicroelectronics
Pin Count 9
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - 9-PowerSMD_2025-1
Released Date Jan 23, 2025
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STGSH50M120D Details

Manufacturer Part Number:
STGSH50M120D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
STMicroelectronics

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STGSH50M120D Overview

Use the download button to access the STGSH50M120D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STGSH, or try a keyword search, such as IGBTs
