STIB1560DM2T-L - STMicroelectronics

Description: Power Driver Module MOSFET 3 Phase Inverter 600 V 17 A 26-PowerDIP Module (1.146", 29.10mm)

Download STIB1560DM2T-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

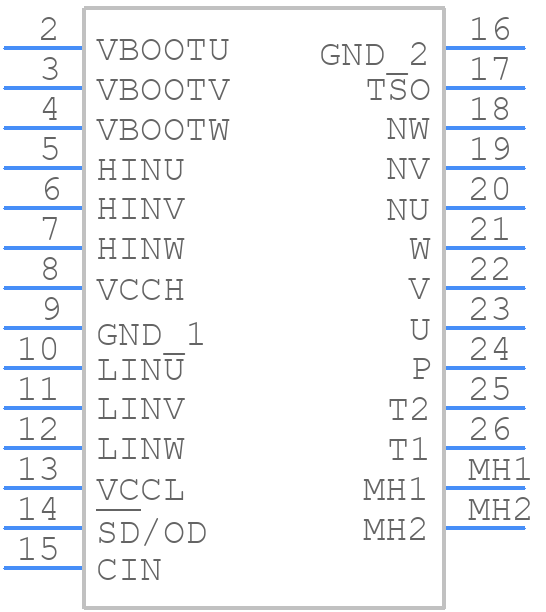

STIB1560DM2T-L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

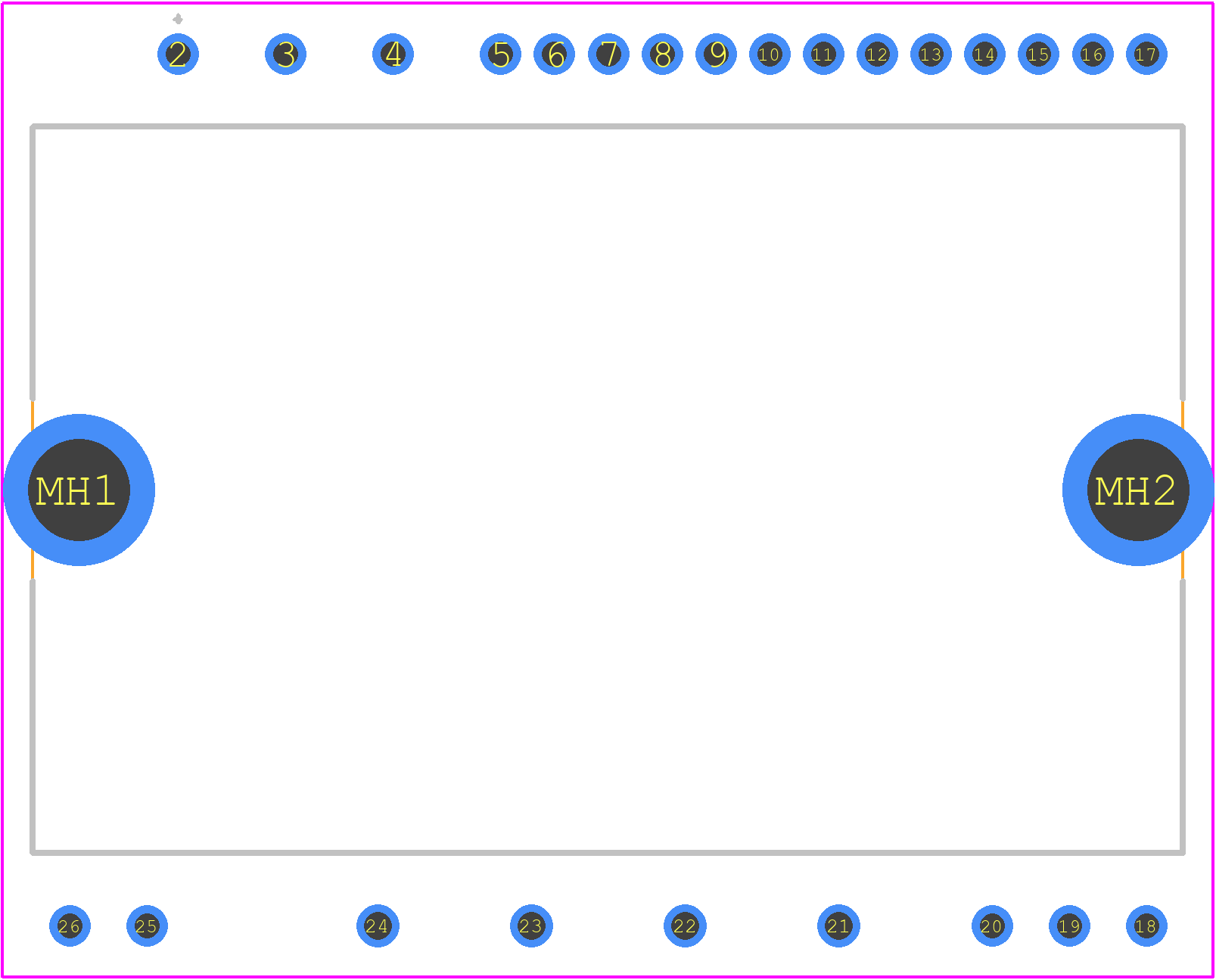

STIB1560DM2T-L - STMicroelectronics PCB footprint - Other - Other - STIB1560DM2T-L-6
click to zoom
3D Models
STIB1560DM2T-L - STMicroelectronics - 3D model - Other - STIB1560DM2T-L-6
click to zoom

STIB1560DM2T-L Details

  • Manufacturer Part Number:

    STIB1560DM2T-L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SDIP-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-17

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T26

  • Length:

    38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

  • Width:

    24 mm

STIB1560DM2T-L Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5156, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The STIB1560DM2T-L has a high power dissipation, so thermal management is crucial. Use a heat sink with a thermal interface material, ensure good airflow, and follow the thermal design guidelines in the datasheet and application notes to keep the junction temperature below 150°C.
  • The input capacitor should have a low equivalent series resistance (ESR) and a high ripple current rating. The output capacitor should have a low ESR and a high capacitance value to ensure stable output voltage. Refer to the datasheet and application notes for specific capacitor selection guidelines.
  • The output voltage can be adjusted by changing the feedback resistors (R1 and R2) according to the formula provided in the datasheet. Additionally, the device has a voltage adjustment pin (VADJ) that can be used to fine-tune the output voltage.
  • Handle the device with care to avoid electrostatic discharge (ESD) damage. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow the recommended handling and storage procedures outlined in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STIB1560DM2T-L Overview

Use the download button to access the STIB1560DM2T-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STIB1, or try a keyword search, such as Motion Control Electronics
