STIPN1M50T-H footprint, schematic symbol and 3D model by STMicroelectronics

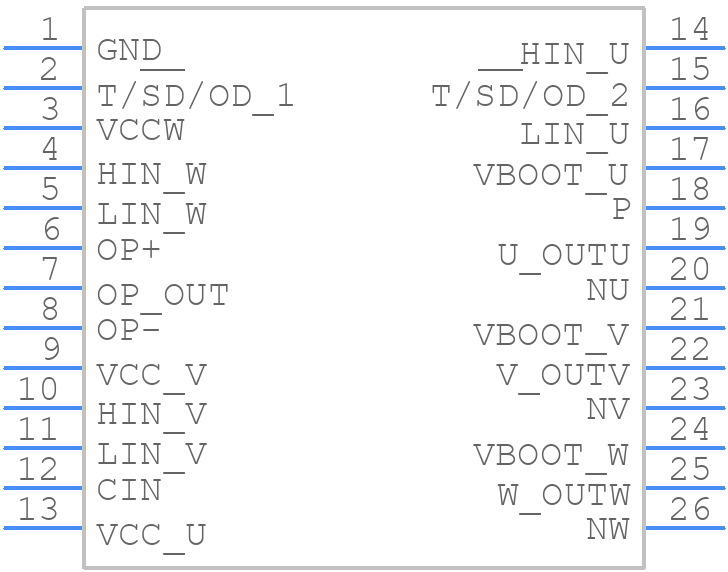

Symbol

click to zoom

PCB Footprints

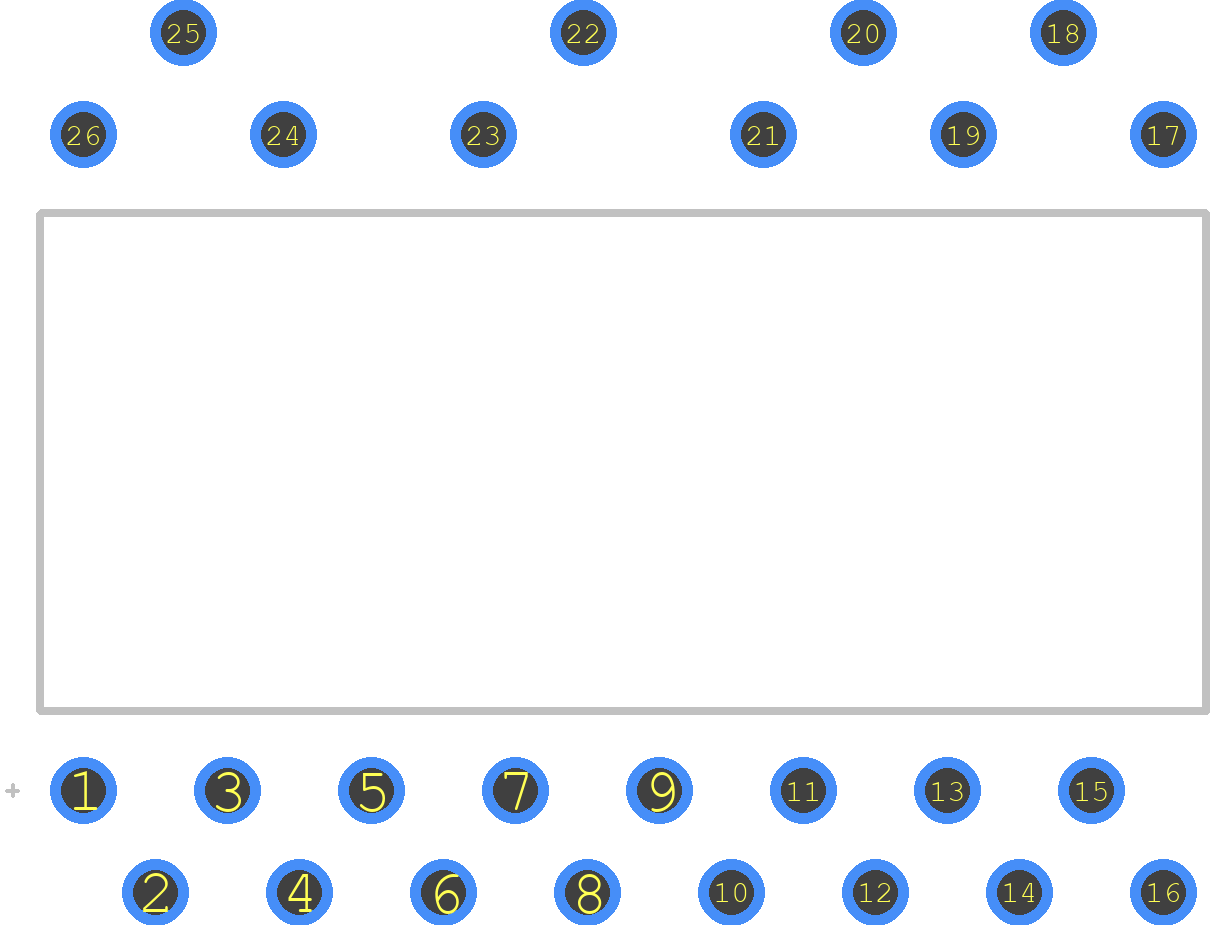

STIPN1M50T-H - STMicroelectronics PCB footprint - Other - Other - NDIP-26L_TYPE_C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STIPN1M50T-H
Part Number STIPN1M50T-H
Manufacturer STMicroelectronics
Pin Count 26
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - NDIP-26L_TYPE_C
Released Date Nov 20, 2018
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STIPN1M50T-H Details

Manufacturer Part Number:
STIPN1M50T-H
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ndip-26
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2017-02-06
Manufacturer:
STMicroelectronics
YTEOL:
0
Analog IC - Other Type:
AC MOTOR CONTROLLER
JESD-30 Code:
R-PZIP-T26
Length:
29.15 mm
Number of Functions:
1
Number of Terminals:
26
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
ZIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
4.4 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
13.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Temperature Grade:
AUTOMOTIVE
Terminal Form:
THROUGH-HOLE
Terminal Position:
ZIG-ZAG
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

STIPN1M50T-H Frequently Asked Questions (FAQs)

The maximum operating temperature range for the STIPN1M50T-H is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
To ensure proper cooling, it's essential to provide a heat sink with a thermal resistance of less than 10°C/W. Additionally, ensure good airflow around the device, and avoid blocking the heat sink fins. You can also consider using a thermal interface material (TIM) to improve heat transfer.
The recommended gate drive voltage for the STIPN1M50T-H is between 10V and 15V. However, it's essential to ensure the gate drive voltage is within the specified range to avoid damaging the device.
Yes, the STIPN1M50T-H is suitable for high-frequency switching applications up to 100 kHz. However, it's crucial to consider the device's switching losses, thermal performance, and layout parasitics to ensure reliable operation.
To protect the STIPN1M50T-H from overvoltage and overcurrent, consider using a voltage clamp or a transient voltage suppressor (TVS) diode. Additionally, implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.

Trust Checks

Expert Contribution

System Verified

Community Approved

STIPN1M50T-H Overview

Use the download button to access the STIPN1M50T-H schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STIPN, or try a keyword search, such as Motion Control Electronics
