STIPN2M50T-H - STMicroelectronics

Description: Power Driver Module MOSFET 3 Phase Inverter 500 V 2 A 26-PowerDIP Module (0.846", 21.48mm)

Download STIPN2M50T-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

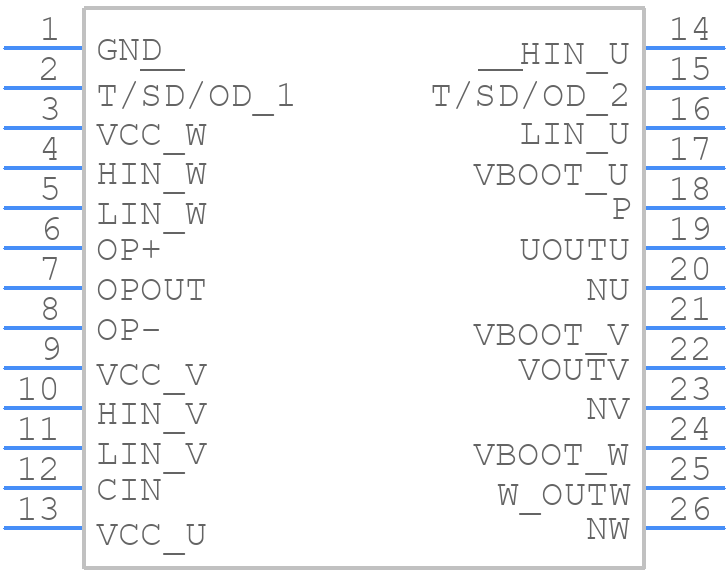

Symbol
STIPN2M50T-H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

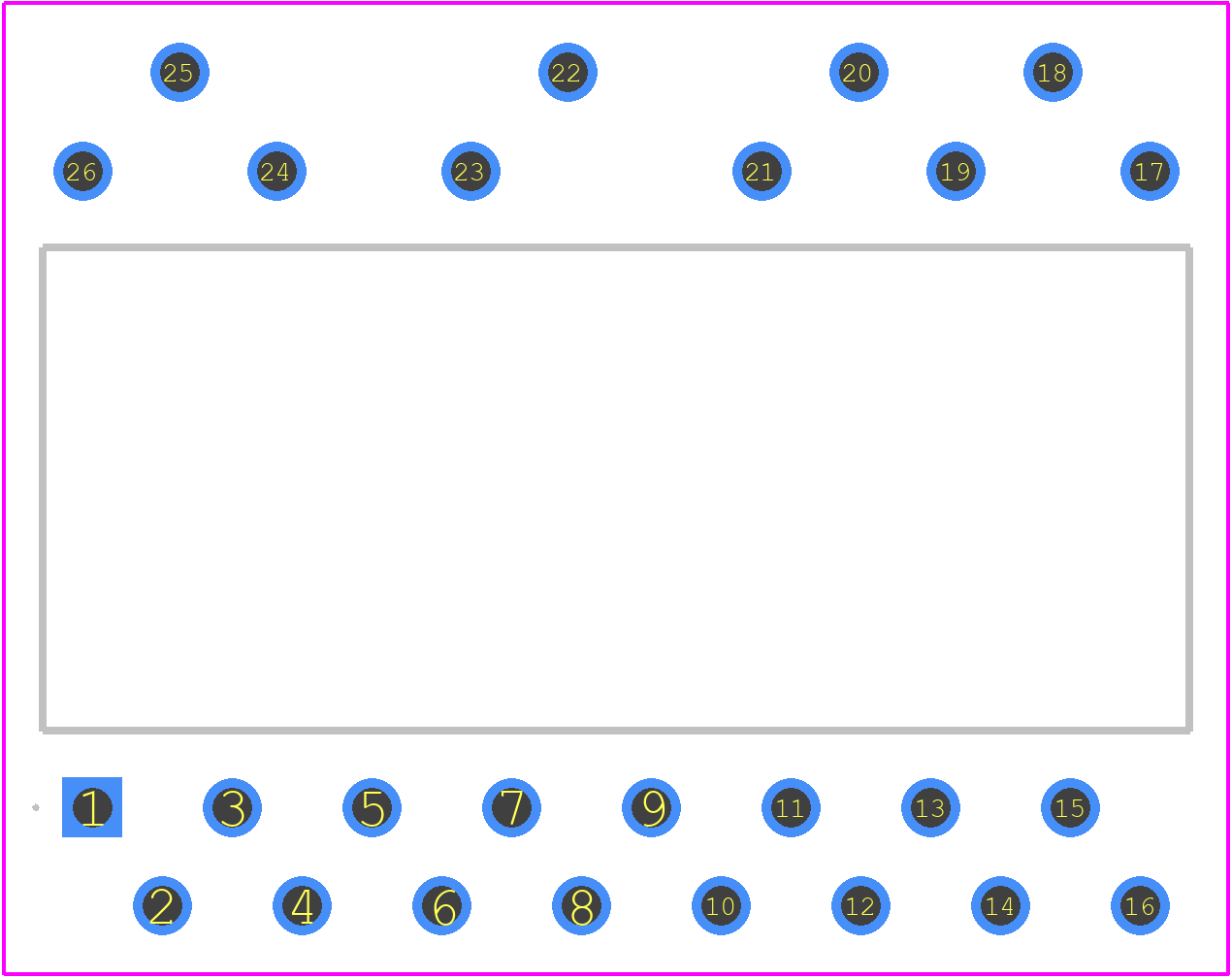

STIPN2M50T-H - STMicroelectronics PCB footprint - Other - Other - STIPN2M50T-H-3
click to zoom
3D Models
STIPN2M50T-H - STMicroelectronics - 3D model - Other - STIPN2M50T-H-3
click to zoom

STIPN2M50T-H Details

  • Manufacturer Part Number:

    STIPN2M50T-H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    NDIP-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-06

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZMA-T26

  • Length:

    29.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZMA

  • Package Equivalence Code:

    MODULE,26LEAD,1.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.4 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

  • Width:

    12.45 mm

STIPN2M50T-H Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STIPN2M50T-H is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
  • To ensure proper biasing, follow the recommended operating conditions in the datasheet, including the gate-source voltage (Vgs) and drain-source voltage (Vds). Additionally, ensure the device is operated within the specified current limits and thermal constraints.
  • For optimal thermal management, use a PCB with a thermal pad and ensure good thermal conductivity between the device and the heat sink. Follow the recommended PCB layout guidelines in the datasheet, including keeping the drain and source pins separate and using a Kelvin connection for the gate pin.
  • To protect the STIPN2M50T-H from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging. Ensure the device is properly grounded during assembly and testing, and consider using ESD protection devices or circuits in the design.
  • The STIPN2M50T-H is designed to meet high reliability standards, with a typical lifespan of 10-15 years or more, depending on operating conditions and environmental factors. Follow the recommended operating conditions and storage guidelines to ensure optimal reliability and lifespan.
