STIPNS1M50SDT-H footprint, schematic symbol and 3D model by STMicroelectronics

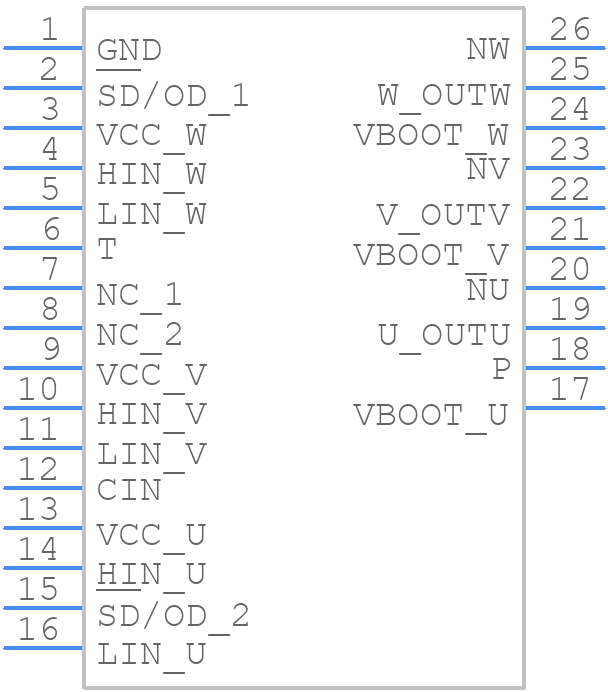

Symbol

click to zoom

PCB Footprints

STIPNS1M50SDT-H - STMicroelectronics PCB footprint - Other - Other - STIPNS1M50SDT-H

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STIPNS1M50SDT-H
Part Number STIPNS1M50SDT-H
Manufacturer STMicroelectronics
Pin Count 26
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - STIPNS1M50SDT-H
Released Date Sep 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

STIPNS1M50SDT-H Details

Manufacturer Part Number:
STIPNS1M50SDT-H
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
NSDIP-28/26
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
Analog IC - Other Type:
AC MOTOR CONTROLLER
JESD-30 Code:
R-PDMA-G26
Length:
29.15 mm
Number of Functions:
1
Number of Terminals:
26
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,26LEAD,.67
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
3.45 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
13.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
12.45 mm

STIPNS1M50SDT-H Frequently Asked Questions (FAQs)

The maximum operating temperature range for the STIPNS1M50SDT-H is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within the -40°C to 125°C range for optimal performance and reliability.
To ensure proper biasing, follow the recommended operating conditions and biasing schemes outlined in the datasheet. Typically, this involves connecting the gate to a voltage source, and the drain to a load or a voltage source, while ensuring the device is operated within the recommended voltage and current ranges.
For optimal thermal management, it's recommended to use a PCB with a thermal pad and a heat sink. Ensure the device is mounted on a copper plane or a thermal via to dissipate heat efficiently. Follow the recommended PCB layout guidelines in the datasheet and application notes to minimize thermal resistance and ensure reliable operation.
To protect the STIPNS1M50SDT-H from ESD, follow proper handling and storage procedures. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-protected package. During assembly, use ESD-protected tools and equipment, and avoid touching the device's pins or leads.
The recommended gate drive circuits for the STIPNS1M50SDT-H typically involve using a gate driver IC or a discrete transistor-based driver. The gate driver should be capable of providing a high current pulse to quickly charge and discharge the gate capacitance. Follow the recommended gate drive circuits and guidelines in the datasheet and application notes.
