STIPNS1M50T-H - STMicroelectronics

Description: SLLIMM-nano small low-loss intelligent molded module IPM, 3-phase inverter, 1 A, 3.6 Ohm max., 500 V MOSFET

Download STIPNS1M50T-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

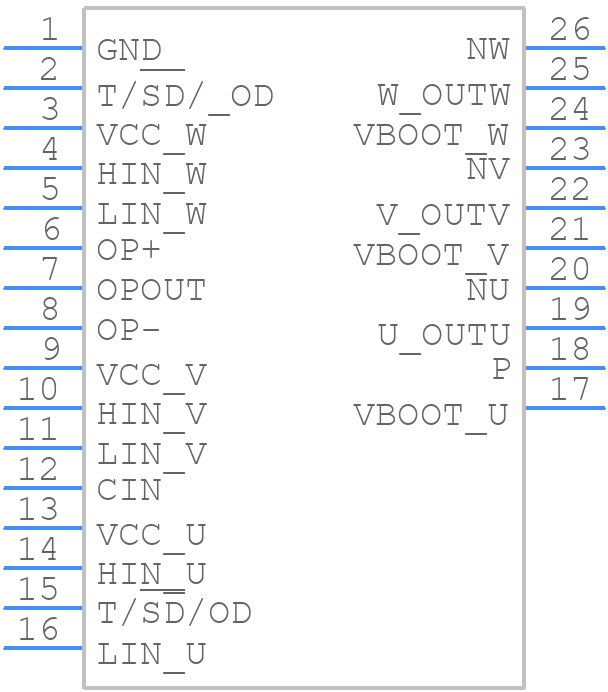

STIPNS1M50T-H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STIPNS1M50T-H - STMicroelectronics PCB footprint - Other - Other - NSDIP-26L_2022-2
click to zoom
3D Models
STIPNS1M50T-H - STMicroelectronics - 3D model - Other - NSDIP-26L_2022-2
click to zoom

STIPNS1M50T-H Details

  • Manufacturer Part Number:

    STIPNS1M50T-H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    NSDIP-28/26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-G26

  • JESD-609 Code:

    e3

  • Length:

    29.15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,26LEAD,.67

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Width:

    12.45 mm

STIPNS1M50T-H Frequently Asked Questions (FAQs)

  • The maximum allowed voltage drop across the IGBT is typically around 2.5V to 3.5V, depending on the operating conditions. Exceeding this limit can lead to reduced efficiency and possible damage to the device.
  • To ensure proper thermal interface, apply a thin layer of thermal grease (e.g., Thermal Grizzly Kryonaut) to the IGBT's exposed metal surface. Then, secure the heat sink using screws or clips, taking care not to overtighten, which can damage the device.
  • The recommended gate resistance value is typically between 1 ohm and 10 ohm, depending on the specific application and switching frequency. A higher gate resistance can help reduce electromagnetic interference (EMI) but may slow down the switching speed.
  • While the STIPNS1M50T-H can be used in high-frequency switching applications, it's essential to consider the device's switching losses, which increase with frequency. The datasheet provides information on switching energy losses; ensure your design stays within the recommended limits to avoid overheating and reduce efficiency.
  • To protect the IGBT from voltage spikes and transients, use an appropriate voltage clamp circuit or a Transient Voltage Suppressor (TVS) diode in parallel with the IGBT. This helps absorb or clamp voltage surges, preventing damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STIPNS1M50T-H Overview

Use the download button to access the STIPNS1M50T-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STIPN, or try a keyword search, such as Motion Control Electronics
