STIPNS2M50-H footprint, schematic symbol and 3D model by STMicroelectronics

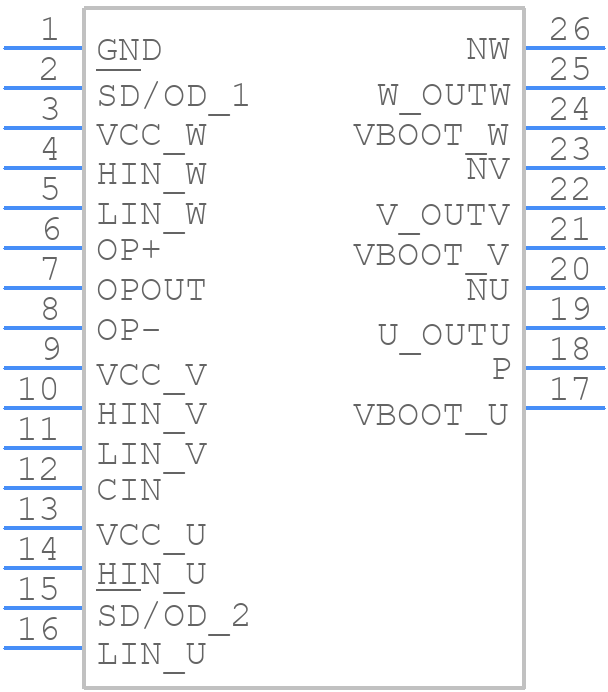

Symbol

click to zoom

PCB Footprints

STIPNS2M50-H - STMicroelectronics PCB footprint - Other - Other - STIPNS2M50-H

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STIPNS2M50-H
Part Number STIPNS2M50-H
Manufacturer STMicroelectronics
Pin Count 26
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - STIPNS2M50-H
Released Date Sep 11, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STIPNS2M50-H Details

Manufacturer Part Number:
STIPNS2M50-H
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
NSDIP-28/26
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Analog IC - Other Type:
AC MOTOR CONTROLLER
JESD-30 Code:
R-PDMA-G26
Length:
29.15 mm
Number of Functions:
1
Number of Terminals:
26
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,26LEAD,.67
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
3.45 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
13.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
12.45 mm

STIPNS2M50-H Frequently Asked Questions (FAQs)

The maximum operating temperature range for the STIPNS2M50-H is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -20°C to 125°C for optimal performance and reliability.
To ensure proper cooling, it's essential to provide a heat sink with a thermal resistance of less than 10°C/W. Additionally, ensure good airflow around the device, and avoid blocking the heat sink fins. You can also consider using a thermal interface material (TIM) to improve heat transfer.
For optimal performance, it's recommended to follow a 4-layer PCB layout with a dedicated power plane, a dedicated ground plane, and separate signal layers. Keep the power and ground planes as close as possible to the device, and use vias to connect the power and ground pins to the respective planes.
To handle high voltage spikes, use a snubber circuit or a clamp circuit to limit the voltage peaks. You can also consider using a TVS (Transient Voltage Suppressor) diode or a varistor to protect the device and the surrounding circuitry.
The recommended gate drive voltage for the STIPNS2M50-H is between 10V and 15V. However, it's essential to ensure the gate drive voltage is within the specified range to avoid damage to the device or reduced performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STIPNS2M50-H Overview

Use the download button to access the STIPNS2M50-H schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STIPN, or try a keyword search, such as Motion Control Electronics
