A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
For EMI and EMC compliance, consider using a shielded layout, minimizing loop areas, and using decoupling capacitors to reduce noise. Also, ensure that the device is properly grounded, and consider using EMI filters or common-mode chokes if necessary.
To protect the device from overvoltage and overcurrent conditions, consider using voltage regulators, overvoltage protection (OVP) circuits, and overcurrent protection (OCP) circuits. Additionally, ensure that the device is operated within its recommended operating conditions.
For optimal soldering and assembly, follow the recommended reflow soldering profile, and ensure that the device is handled and stored in a static-protected environment. Use a soldering iron with a temperature-controlled tip, and avoid applying excessive force or pressure during assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STK672-080-E Overview

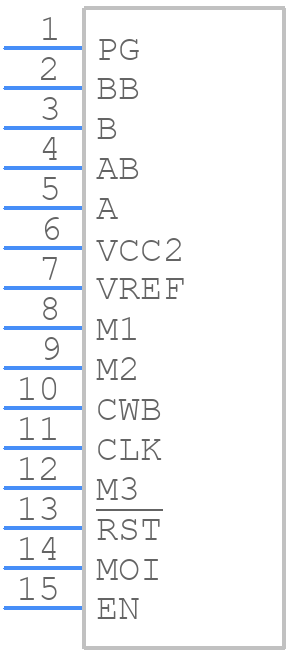

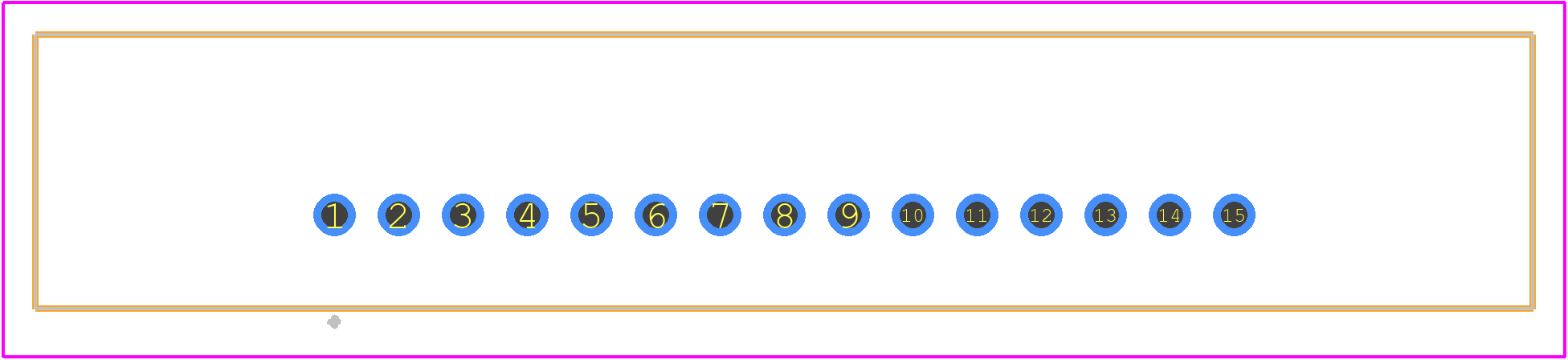

Use the download button to access the STK672-080-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STK67,
or try a keyword search, such as Motion Control Electronics
