STM051M5PQ - TE Connectivity

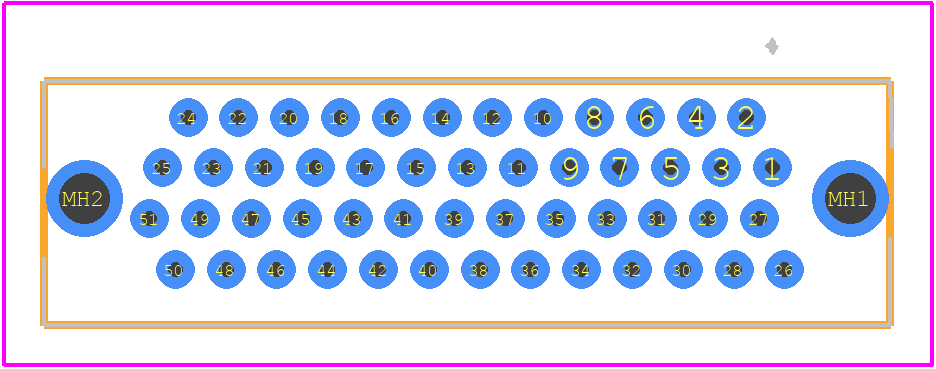

STM051M5PQ Details

• Manufacturer Part Number:

  STM051M5PQ

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  9

• Body Breadth:

  0.24 inch

• Body Depth:

  0.308 inch

• Body Length:

  0.834 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D NANOMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  707VAC V

• Durability:

  500 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  1.668 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.04 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE 0.047

• Mounting Option 2:

  JACKSCREW

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  200 °C

• Operating Temperature-Min:

  -200 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.27 mm

• Panel Mount:

  NO

• Plating Thickness:

  90u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1 A

• Shell Finish:

  NICKEL

• Shell Material:

  ALUMINUM ALLOY

• Terminal Length:

  0.09 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  51

• Withdrawl Force-Min:

  0.139 N
