STM1403ASMQ6F - STMicroelectronics

Description: 3 V FIPS-140 security supervisor with battery switchover

Download STM1403ASMQ6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

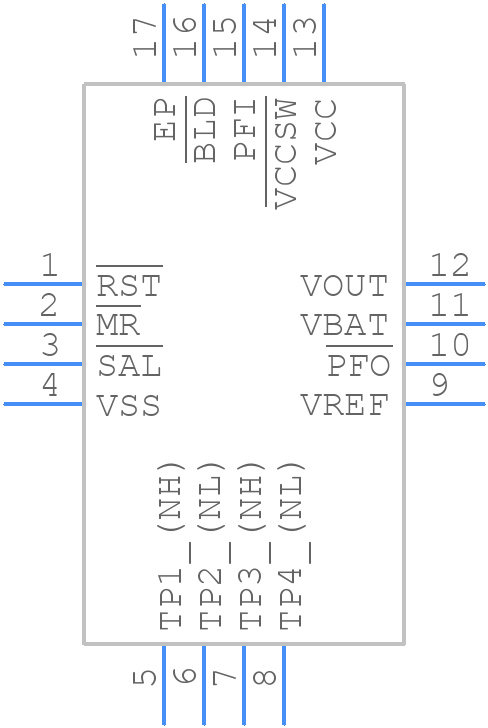

STM1403ASMQ6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM1403ASMQ6F - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 – 16-lead, quad, flat package, no lead, 3 x 3 mm body size
click to zoom
3D Models
STM1403ASMQ6F - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16 – 16-lead, quad, flat package, no lead, 3 x 3 mm body size
click to zoom

STM1403ASMQ6F Details

  • Manufacturer Part Number:

    STM1403ASMQ6F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, LEAD FREE, QFN-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:Y;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SECURITY SUPERVISOR WITH BATTERY BACKUP

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

STM1403ASMQ6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM1403ASMQ6F in the application note AN5096, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the guidelines in the datasheet for thermal management, including proper heat sinking, thermal interface material selection, and derating the device's power dissipation according to the ambient temperature.
  • STMicroelectronics recommends following the JEDEC standard J-STD-020D for soldering conditions, which specifies a peak temperature of 260°C and a dwell time of 30-45 seconds for the STM1403ASMQ6F.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback network for proper configuration and operation. Also, verify that the device is operating within its specified temperature range and that the thermal management is adequate.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10-22 μF for the input capacitor, depending on the specific application requirements and input voltage ripple.
