STMicroelectronics provides a recommended PCB layout for the STM6904TGEDS6F in the application note AN5076, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to reduce the device temperature.
The STM6904TGEDS6F has a limited short-circuit current capability, which means it may not be able to withstand high current surges or short-circuits. To mitigate this, ensure that the device is properly protected with fuses, circuit breakers, or other overcurrent protection devices, and design the system to minimize the risk of short-circuits.
To optimize power consumption, consider using the device's low-power modes, such as shutdown or standby, when not in use. Additionally, optimize the system design to minimize power consumption, such as using low-power peripherals, reducing clock frequencies, and using power gating techniques.
To ensure EMC and EMI compliance, follow the guidelines in the application note AN2866, which provides recommendations for PCB layout, component selection, and shielding to minimize electromagnetic radiation and susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STM6904TGEDS6F Overview

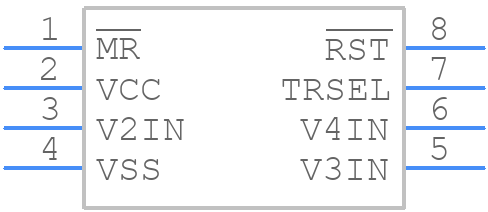

Use the download button to access the STM6904TGEDS6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM69,
or try a keyword search, such as Power Management Circuits
