STM6905TWEDS6F - STMicroelectronics

Description: Quintuple, ultralow voltage supervisor with push-button reset

Download STM6905TWEDS6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

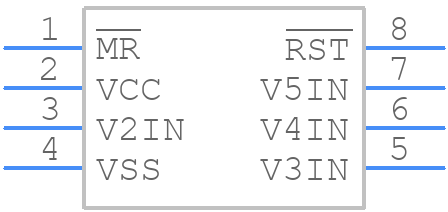

STM6905TWEDS6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6905TWEDS6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MiniSO-8(H=1.1mm)-2
click to zoom
3D Models
STM6905TWEDS6F - STMicroelectronics - 3D model - Small Outline Packages - MiniSO-8(H=1.1mm)-2
click to zoom

STM6905TWEDS6F Details

  • Manufacturer Part Number:

    STM6905TWEDS6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.016 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.078,1.683V

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

STM6905TWEDS6F Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
  • To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
  • For EMI and EMC compliance, consider using a shielded enclosure, minimizing loop areas in the PCB layout, and using EMI filters or common-mode chokes to reduce emissions. Also, ensure that the device is properly decoupled and that the power supply is well-regulated.
  • To troubleshoot issues with the internal oscillator, check the oscillator circuitry for proper component values and PCB layout. Verify that the oscillator pins are not loaded excessively and that the power supply is stable. If issues persist, consider using an external oscillator or clock source.
  • Operating the device at the maximum junction temperature can reduce its lifespan and affect its reliability. It is essential to ensure that the device is operated within the recommended temperature range to maintain its performance and longevity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM6905TWEDS6F Overview

Use the download button to access the STM6905TWEDS6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM69, or try a keyword search, such as Power Management Circuits
