STM704M6F - STMicroelectronics

Description: 5 V supervisor with battery switchover

Download STM704M6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

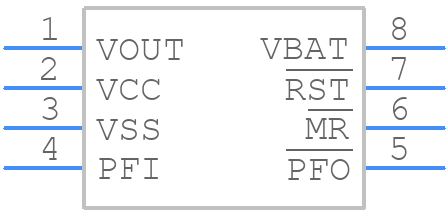

Symbol
STM704M6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM704M6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO--150 mils body width,
click to zoom
3D Models
STM704M6F - STMicroelectronics - 3D model - Small Outline Packages - SO--150 mils body width,
click to zoom

STM704M6F Details

  • Manufacturer Part Number:

    STM704M6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.4V; MANUAL RESET INPUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM704M6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM704M6F in the application note AN5096, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable startup and shutdown, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage ramps up and down slowly (typically 10-20 ms) to prevent damage to the device.
  • Operating the STM704M6F outside the recommended temperature range of -40°C to 150°C may affect its performance, reliability, and lifespan. The device may experience reduced efficiency, increased power consumption, or even permanent damage. It's crucial to ensure the device operates within the specified temperature range to guarantee optimal performance and reliability.
  • The STM704M6F has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still essential to implement external protection circuits to prevent damage from voltage transients or faults. A suitable overvoltage protection circuit can be designed using a voltage supervisor IC, such as the STM6627, and a suitable undervoltage protection circuit can be designed using a voltage detector IC, such as the STM6916.
  • To minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC), follow the recommended PCB layout and design guidelines in the datasheet and application notes. Additionally, consider using shielding, filtering, and decoupling techniques to reduce EMI emissions and improve immunity to external interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM704M6F Overview

Use the download button to access the STM704M6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM70, or try a keyword search, such as Power Management Circuits
