STM704RM6E - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM704RM6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

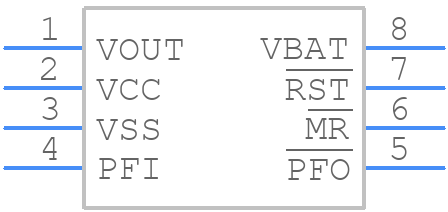

Symbol
STM704RM6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM704RM6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_
click to zoom
3D Models
STM704RM6E - STMicroelectronics - 3D model - Small Outline Packages - SO 8_
click to zoom

STM704RM6E Details

  • Manufacturer Part Number:

    STM704RM6E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:Y;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.625V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM704RM6E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM704RM6E in the application note AN5096, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable startup and shutdown, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage ramps up and down slowly (typically 10-20 ms) to prevent damage to the device.
  • Operating the STM704RM6E outside the recommended temperature range of -40°C to 150°C may affect its performance, reliability, and lifespan. The device may experience reduced efficiency, increased power consumption, or even permanent damage. It's crucial to ensure the device operates within the specified temperature range to guarantee optimal performance and reliability.
  • To troubleshoot output voltage regulation issues, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes for guidance on adjusting the output voltage and compensating for load transients.
  • To minimize EMI and EMC issues, follow the recommended PCB layout and design guidelines, including the use of shielding, filtering, and decoupling capacitors. Ensure that the device is properly grounded, and consider using a common-mode choke or ferrite bead to reduce conducted emissions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM704RM6E Overview

Use the download button to access the STM704RM6E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM70, or try a keyword search, such as Power Management Circuits
