STM704TM6E - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM704TM6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

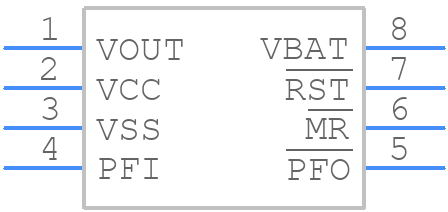

Symbol
STM704TM6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM704TM6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_
click to zoom
3D Models
STM704TM6E - STMicroelectronics - 3D model - Small Outline Packages - SO 8_
click to zoom

STM704TM6E Details

  • Manufacturer Part Number:

    STM704TM6E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:Y;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.075V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM704TM6E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5176, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
  • The thermal shutdown feature is enabled by default, but it can be disabled by tying the TSD pin to VCC. When enabled, the device will shut down when the junction temperature exceeds 150°C. You should ensure that your design can handle the shutdown and restart sequence, and consider adding a thermal monitoring circuit to detect and respond to thermal events.
  • The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. A ceramic or film capacitor with an X7R or X5R dielectric is recommended. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The STM704TM6E has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. You should ensure that the input voltage rises monotonically and reaches the minimum operating voltage (VIN(min)) before the device is enabled. Additionally, you should add a power-up delay circuit to ensure that the device is fully powered up before the output voltage is enabled.
  • The maximum output current capability of the STM704TM6E is 6A, but this is dependent on the input voltage, output voltage, and ambient temperature. You should ensure that your design operates within the recommended operating conditions and thermal limits to avoid overheating and ensure reliable operation.
