STM795SM6E - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM795SM6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

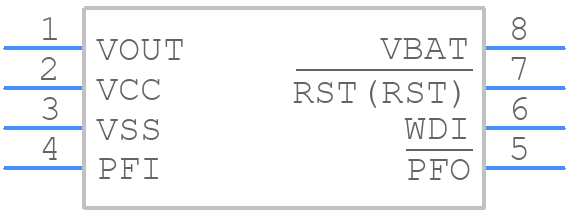

Symbol
STM795SM6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM795SM6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
STM795SM6E - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

STM795SM6E Details

  • Manufacturer Part Number:

    STM795SM6E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:Y;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM795SM6E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM795SM6E in the application note AN5076, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The STM795SM6E has a built-in overcurrent protection feature, but it can be further enhanced by adding an external current sense resistor and a comparator circuit to detect overcurrent conditions. The application note AN5077 provides a detailed example of how to implement overcurrent protection for the device.
  • The recommended startup sequence for the STM795SM6E involves powering up the device in a specific order to ensure proper initialization and configuration. The datasheet provides a detailed startup sequence, which includes powering up the VCC and VDD pins, followed by the configuration of the device's registers and finally enabling the output drivers.
  • Troubleshooting issues with the STM795SM6E's I2C interface can be done using a logic analyzer or an oscilloscope to capture the I2C bus signals. Common issues include incorrect clock frequency, incorrect slave address, or bus contention. The application note AN5078 provides a detailed guide on how to troubleshoot I2C interface issues for the STM795SM6E.
  • The STM795SM6E has an operating temperature range of -40°C to 125°C, but the device's performance and reliability may be affected at extreme temperatures. It is recommended to operate the device within the recommended temperature range of -20°C to 85°C for optimal performance and reliability.
