Part Image

STM802LM6F - STMicroelectronics

Description: 5 V supervisor with battery switchover

Download STM802LM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

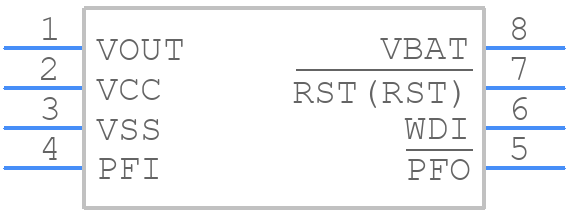

STM802LM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM802LM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8N_2
click to zoom
3D Models
STM802LM6F - STMicroelectronics - 3D model - Small Outline Packages - SO8N_2
click to zoom

STM802LM6F Details

  • Manufacturer Part Number:

    STM802LM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.65V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM802LM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM802LM6F in the application note AN5096, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The STM802LM6F has a complex configuration process that involves setting registers and configuring the device's operating modes. STMicroelectronics provides a software development kit (SDK) and a user manual that guides developers through the configuration process and provides example code for common use cases.
  • The internal voltage regulator of the STM802LM6F has a limited current capability and may not be suitable for all applications. If the device requires a high current or a specific voltage, an external voltage regulator may be necessary. The datasheet provides guidelines for selecting an external voltage regulator and designing the power supply circuit.
  • STMicroelectronics provides a range of tools and resources for troubleshooting communication issues, including protocol analyzers, debug software, and application notes. The device's datasheet and user manual also provide guidance on troubleshooting common issues and error codes.
  • The thermal shutdown and thermal warning thresholds are configurable through the device's registers. The default values are specified in the datasheet, but they can be adjusted based on the specific application requirements. The user manual provides guidance on configuring these thresholds and implementing thermal protection mechanisms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM802LM6F Overview

Use the download button to access the STM802LM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM80, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
