STM804SM6F - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM804SM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

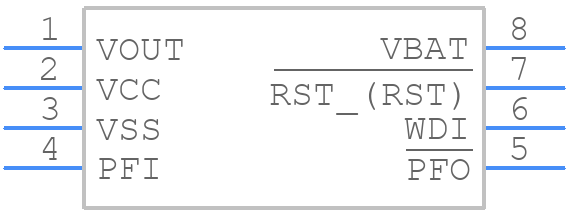

STM804SM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM804SM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 (150 mils width)----
click to zoom
3D Models
STM804SM6F - STMicroelectronics - 3D model - Small Outline Packages - SO8 (150 mils width)----
click to zoom

STM804SM6F Details

  • Manufacturer Part Number:

    STM804SM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 2.925V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM804SM6F Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the voltage to the VDD pin, followed by the voltage to the VDDA pin. This ensures that the internal regulators are properly powered up and stabilized before the device becomes operational.
  • The clock source for the STM804SM6F can be configured using the Clock Control Register (RCC). The RCC allows you to select between the internal High-Speed Internal Clock (HSI), the External Clock (EXTI), or the Phase-Locked Loop (PLL) as the clock source. You can also configure the clock frequency and prescalers using the RCC.
  • The maximum operating frequency of the STM804SM6F is 180 MHz. However, this frequency can be adjusted using the clock prescalers and PLL to achieve lower frequencies if required.
  • The DMA controller in the STM804SM6F can be used to transfer data between peripherals and memory without CPU intervention. You need to configure the DMA channel, set the transfer mode, and enable the DMA interrupt to use the DMA controller. The DMA controller can be used to transfer data between peripherals such as UART, SPI, and I2C, and memory.
  • The Bootloader in the STM804SM6F is a small program that runs when the device is powered up. It is used to load the application program from an external memory device such as a flash memory or a serial interface. The Bootloader can also be used to update the firmware of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM804SM6F Overview

Use the download button to access the STM804SM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM80, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
