STM805LM6F - STMicroelectronics

Description: 5 V supervisor with battery switchover

Download STM805LM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

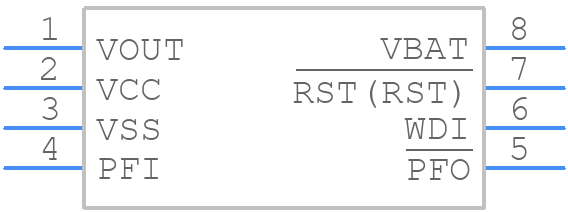

STM805LM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM805LM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8N_2
click to zoom
3D Models
STM805LM6F - STMicroelectronics - 3D model - Small Outline Packages - SO8N_2
click to zoom

STM805LM6F Details

  • Manufacturer Part Number:

    STM805LM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.65V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM805LM6F Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the voltage to the VDD pin, followed by the voltage to the VDDA pin. This ensures that the internal regulators are properly powered up and stabilized before the device becomes operational.
  • The clock tree should be configured to use the highest frequency clock source available (e.g. HSE or PLL) and to enable the clock gating feature to reduce power consumption. Additionally, the clock prescalers should be set to the optimal values for the specific application.
  • The maximum allowed voltage on the GPIO pins is 3.6V, which is the absolute maximum rating. However, it is recommended to keep the voltage below 3.3V to ensure reliable operation and to prevent damage to the device.
  • A reliable reset circuit can be implemented using an external reset IC (e.g. STM811) or by using a simple RC circuit with a capacitor and a resistor. The reset signal should be connected to the NRST pin and should be able to hold the device in reset for at least 10ms.
  • The power supply pins (VDD and VDDA) should be connected to a solid power plane with a low impedance path to the power source. The decoupling capacitors should be placed as close as possible to the power pins and should have a low ESL and ESR. The power supply lines should be routed away from sensitive analog signals to prevent noise coupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM805LM6F Overview

Use the download button to access the STM805LM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM80, or try a keyword search, such as Power Management Circuits
