Part Image

STM805SM6F - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM805SM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

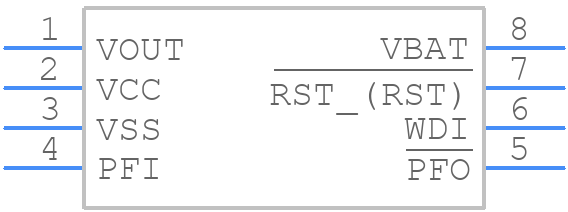

Symbol
STM805SM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM805SM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 package outline*14
click to zoom
3D Models
STM805SM6F - STMicroelectronics - 3D model - Small Outline Packages - SO8 package outline*14
click to zoom

STM805SM6F Details

  • Manufacturer Part Number:

    STM805SM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 2.925V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM805SM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM805SM6F in the application note AN4900, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The STM805SM6F has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN4900 provides a detailed example of how to implement overcurrent protection, including calculation of the required resistor and capacitor values.
  • While the datasheet specifies a maximum rating of 5.5V for the VCC pin, it's recommended to limit the voltage to 5V to ensure reliable operation and prevent damage to the device. Exceeding 5V may cause permanent damage or affect the device's performance.
  • STMicroelectronics provides guidelines for EMC design in the application note AN2679, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with regulatory standards.
  • The STM805SM6F can operate at clock frequencies up to 72 MHz, but the recommended frequency is 48 MHz to ensure optimal performance and power consumption. Higher frequencies may require additional power consumption and may affect the device's reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM805SM6F Overview

Use the download button to access the STM805SM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM80, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
