STM817LM6F - STMicroelectronics

Description: 5 V supervisor with battery switchover

Download STM817LM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

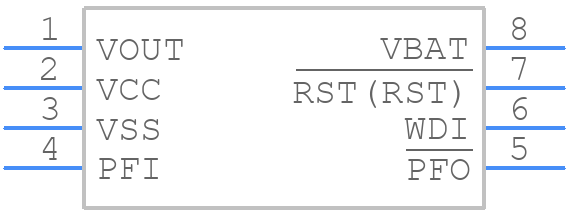

Symbol
STM817LM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM817LM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ...SO-8 mechanical data888
click to zoom
3D Models
STM817LM6F - STMicroelectronics - 3D model - Small Outline Packages - ...SO-8 mechanical data888
click to zoom

STM817LM6F Details

  • Manufacturer Part Number:

    STM817LM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.65V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM817LM6F Frequently Asked Questions (FAQs)

  • The STM817LM6F can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -40°C to 85°C for optimal performance and reliability.
  • The clock settings for the STM817LM6F can be configured using the Clock Control Register (CKCU) and the Power Management Unit (PMU). The clock source can be selected from the internal RC oscillator, external crystal oscillator, or external clock source. The clock frequency can be divided or multiplied using the prescalers and PLLs.
  • The maximum current consumption of the STM817LM6F depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is around 350 mA at 32 MHz and 3.3 V, but this can be reduced to around 20 mA in low-power mode.
  • The STM817LM6F has several low-power modes, including Sleep, Stop, and Standby modes. These modes can be entered by configuring the Power Management Unit (PMU) and Clock Control Register (CKCU). The device can also be woken up from low-power modes using interrupts or external events.
  • The maximum flash memory endurance of the STM817LM6F is around 10,000 cycles at 25°C, with a minimum retention time of 20 years. However, this can be affected by factors such as temperature, voltage, and programming/erasing cycles.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM817LM6F Overview

Use the download button to access the STM817LM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM81, or try a keyword search, such as Power Management Circuits
