STM818LM6F - STMicroelectronics

Description: 5 V supervisor with battery switchover

Download STM818LM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

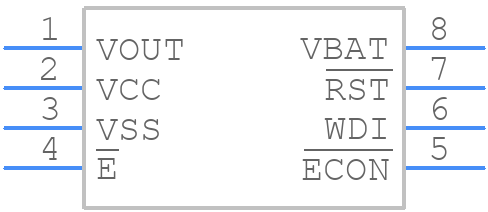

STM818LM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM818LM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ...SO-8 mechanical data888
click to zoom
3D Models
STM818LM6F - STMicroelectronics - 3D model - Small Outline Packages - ...SO-8 mechanical data888
click to zoom

STM818LM6F Details

  • Manufacturer Part Number:

    STM818LM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.65V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM818LM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM818LM6F in the application note AN5076, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
  • The STM818LM6F has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The application note AN5076 provides a detailed example of how to implement overcurrent protection for the device.
  • Although the datasheet specifies a maximum operating voltage of 5.5V, the absolute maximum rating for the VCC pin is 6.5V. However, it's recommended to operate the device within the specified operating voltage range to ensure reliability and performance.
  • STMicroelectronics provides guidelines for EMC design considerations in the application note AN2866, which includes recommendations for PCB layout, component selection, and shielding to ensure electromagnetic compatibility with the STM818LM6F.
  • The recommended power-up sequence for the STM818LM6F is to first apply the voltage on the VCC pin, followed by the voltage on the VIN pin. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
