STPM066S-V0T - STMicroelectronics

Description: Power management for automotive vision and radar systems

Download STPM066S-V0T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

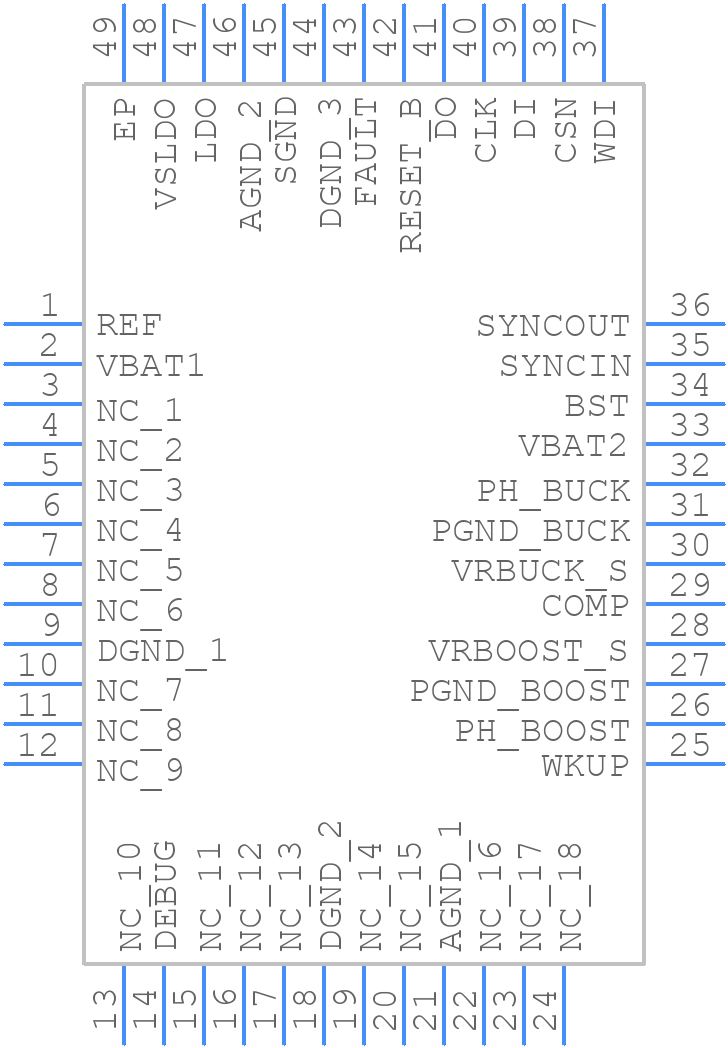

Symbol
STPM066S-V0T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STPM066S-V0T - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm_2022
click to zoom
3D Models
STPM066S-V0T - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm_2022
click to zoom

STPM066S-V0T Details

  • Manufacturer Part Number:

    STPM066S-V0T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100, ISO 26262-ASIL A/B/C/D

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +5.8V

  • Width:

    7 mm

STPM066S-V0T Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Refer to the application note AN4838 for more detailed guidance.
  • The maximum allowed voltage drop across the STPM066S-V0T is 1.5V. Exceeding this voltage drop may affect the device's performance and reliability.
  • The STPM066S-V0T is rated for operation up to 150°C. However, it's essential to ensure proper thermal management and consider derating the device's performance at high temperatures. Consult the datasheet and application notes for more information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which covers common issues and their solutions. Additionally, consult the datasheet and contact STMicroelectronics' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STPM066S-V0T Overview

Use the download button to access the STPM066S-V0T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STPM0, or try a keyword search, such as Power Management Circuits
