STPM801 - STMicroelectronics

Description: High Voltage Hot swap, Soft start and Oring

Download STPM801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

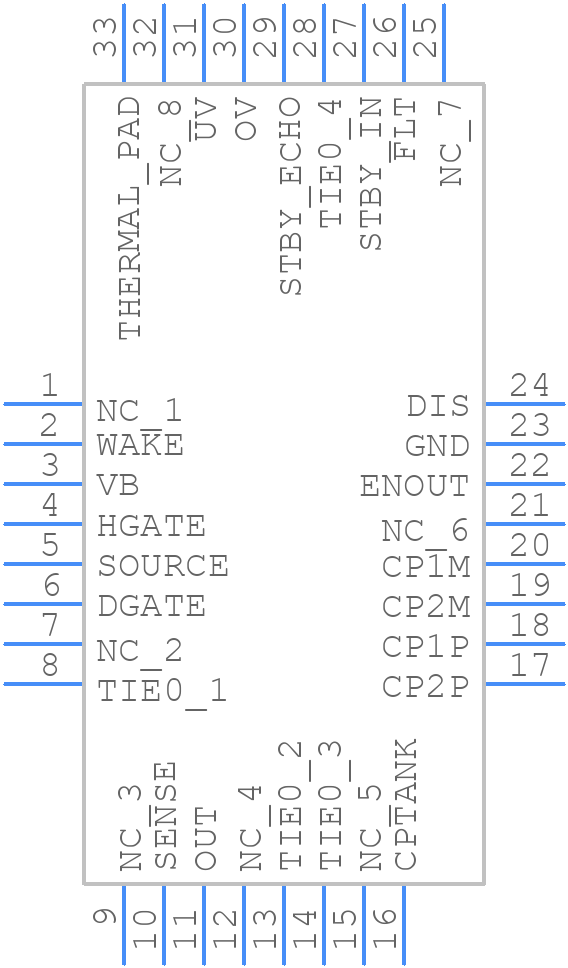

STPM801 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STPM801 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFN (5x5x0.9, 32+4L)
click to zoom
3D Models
STPM801 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFN (5x5x0.9, 32+4L)
click to zoom

STPM801 Details

  • Manufacturer Part Number:

    STPM801

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    16 mA

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1V; +1.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

STPM801 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended.
  • To ensure accurate current measurement, use a low-impedance current sense resistor (RSENSE) and place it as close as possible to the STPM801. Also, use a Kelvin connection to the sense resistor to minimize parasitic resistance and inductance.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to limit the voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The STPM801 has built-in OCP and OVP features. For OCP, set the OCP threshold using the ITRIP pin and ensure the sense resistor is properly sized. For OVP, use an external voltage supervisor or a Zener diode to clamp the input voltage to a safe level.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. A low-ESR capacitor, such as an X5R or X7R type, is preferred to minimize voltage ripple and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STPM801 Overview

Use the download button to access the STPM801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STPM8, or try a keyword search, such as Power Management Circuits
