STSPIN240 - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Low voltage dual brush DC motor driver

Download STSPIN240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

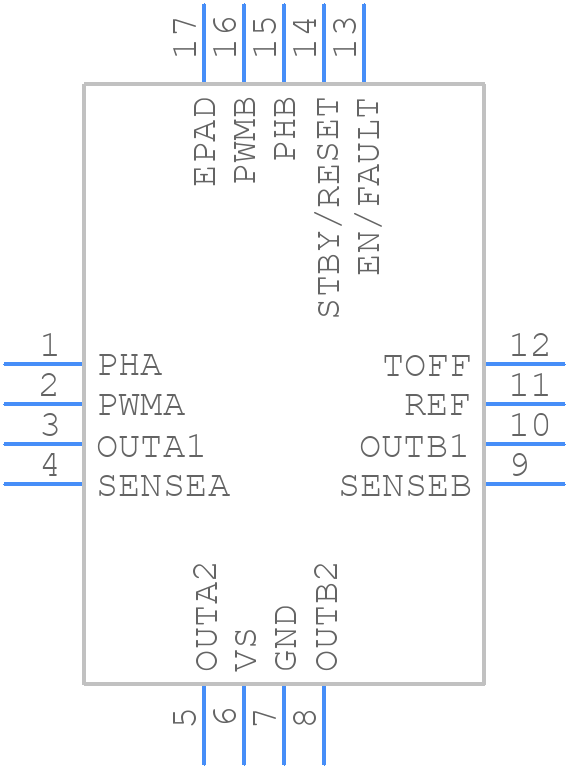

Symbol
STSPIN240 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN240 - STMicroelectronics PCB footprint - Other - Other - VFQFPN(3x3x1.0mm-16L)
click to zoom
3D Models
STSPIN240 - STMicroelectronics - 3D model - Other - VFQFPN(3x3x1.0mm-16L)
click to zoom

STSPIN240 Details

  • Manufacturer Part Number:

    STSPIN240

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-16

  • Manufacturer Package Code:

    VFQFPN 16 3x3x1.0

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

STSPIN240 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the motor using STSPIN240 is 40V. However, it's recommended to operate within the 12V to 24V range for optimal performance and to ensure the device's reliability.
  • The sense resistor value depends on the motor's current rating and the desired overcurrent protection threshold. A general guideline is to choose a sense resistor value that allows the sense voltage to be around 0.5V to 1V at the maximum motor current. STMicroelectronics provides a sense resistor calculation tool to help with this selection.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage for the power MOSFETs. It's essential for proper device operation and should be selected based on the motor's operating frequency and the desired gate drive voltage.
  • The STSPIN240 has a built-in overcurrent protection feature that can be enabled by connecting the sense resistor to the ISP pin. The device will automatically shut down if the sense voltage exceeds the threshold set by the sense resistor value. Additionally, the device can be configured to latch off or auto-retry after an overcurrent event.
  • The STSPIN240 can operate up to 100 kHz, but the recommended maximum switching frequency is 50 kHz to ensure optimal performance and minimize losses.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN240 Overview

Use the download button to access the STSPIN240 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
