STWLC38JRM - STMicroelectronics

Description: Qi-compliant inductive wireless power receiver for 15W applications

Download STWLC38JRM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

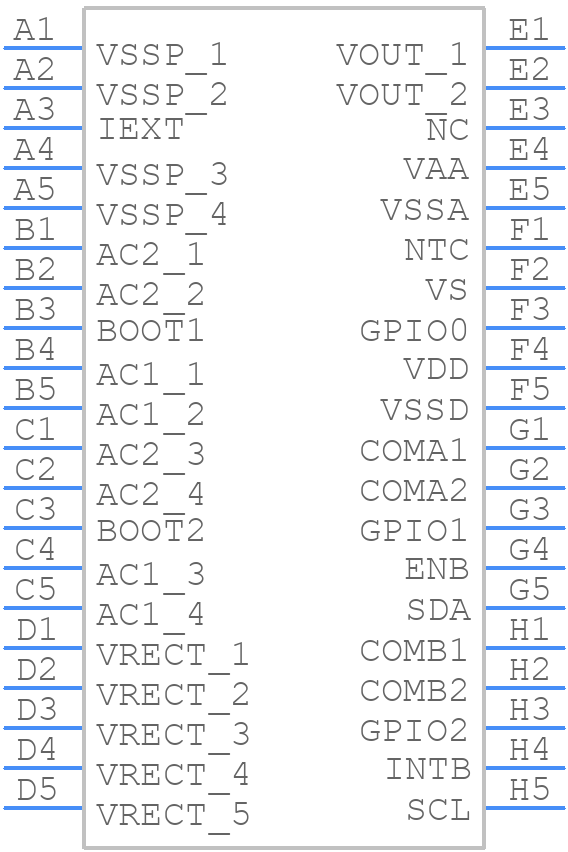

Symbol
STWLC38JRM - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STWLC38JRM - STMicroelectronics PCB footprint - BGA - BGA - WLCSP40 2.126x3.327x0.546 0.4 Pitch
click to zoom
3D Models
STWLC38JRM - STMicroelectronics - 3D model - BGA - WLCSP40 2.126x3.327x0.546 0.4 Pitch
click to zoom

STWLC38JRM Details

  • Manufacturer Part Number:

    STWLC38JRM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-40

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-XBGA-B40

  • Length:

    3.327 mm

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA40,5X8,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.567 mm

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.9, +2.1V

  • Width:

    2.126 mm

STWLC38JRM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the decoupling capacitors close to the IC and use a low-ESR capacitor for the output filter.
  • Use a shielded enclosure, keep the PCB away from the enclosure walls, and ensure good grounding. Also, use a common-mode choke and a ferrite bead in the input and output lines, respectively.
  • The maximum ambient temperature for reliable operation is 85°C. However, the device can operate up to 105°C with derating.
  • Use an external OVP circuit with a zener diode and a resistor. For UVP, use a voltage supervisor IC or a dedicated UVP circuit.
  • A 10-22 μF X7R or X5R ceramic capacitor is recommended for the input filter. The capacitor should be placed close to the IC and connected to the input pin.
