A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
Implement a robust modulation scheme like FSK or OOK, and use techniques like frequency hopping, spread spectrum, or error correction codes to mitigate interference. Additionally, use a good quality antenna with a high gain and directionality.
The maximum transmission distance depends on the environment, antenna gain, and transmission power. In ideal conditions, the SX1243IULTRT can achieve a range of up to 10 km with a high-gain antenna and maximum transmission power.
Use the SX1243IULTRT's low-power modes, such as the sleep mode, and optimize the transmission duty cycle to minimize power consumption. Additionally, use a low-power microcontroller and optimize the system's overall power budget.
Ensure compliance with regional regulations like FCC, ETSI, and TELEC by following guidelines for transmission power, frequency, and modulation. Also, perform thorough testing for electromagnetic compatibility (EMC) and electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SX1243IULTRT Overview

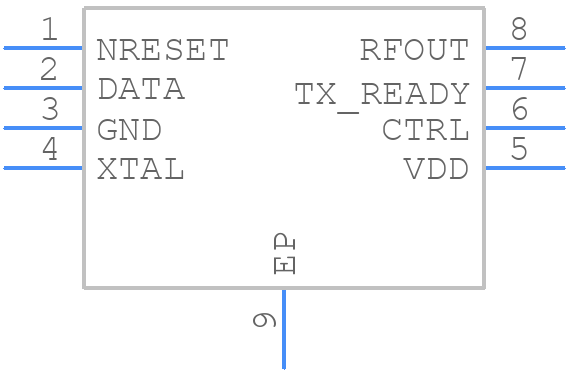

Use the download button to access the SX1243IULTRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SX124,
or try a keyword search, such as Other Telecom ICs
