Part Image

SX8651IWLTRT - SEMTECH

Description: Touch Screen Controllers 4-WIRE RESISTIVE TOUCH SCREEN

Download SX8651IWLTRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

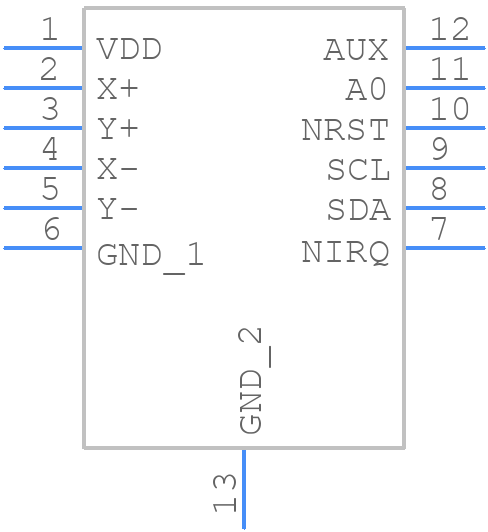

Symbol
SX8651IWLTRT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
SX8651IWLTRT - SEMTECH PCB footprint - Small Outline No-lead - Small Outline No-lead - SX8651IWLTRT
click to zoom
3D Models
SX8651IWLTRT - SEMTECH - 3D model - Small Outline No-lead - SX8651IWLTRT
click to zoom

SX8651IWLTRT Details

  • Manufacturer Part Number:

    SX8651IWLTRT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

SX8651IWLTRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance-controlled line to the antenna.
  • Implement frequency hopping, use a high-quality antenna, and consider using a shield around the module to reduce electromagnetic interference (EMI).
  • The maximum transmission power is +20 dBm (100 mW) for the 868 MHz and 915 MHz frequency bands.
  • Yes, the SX8651IWLTRT is designed for low-power applications and can be used in battery-powered devices. It has a low current consumption of 12 mA in transmit mode and 2.5 mA in receive mode.
  • Configure the module for the desired frequency band, data rate, and transmission power. Adjust the spreading factor, bandwidth, and coding rate to optimize range and data rate for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SX8651IWLTRT Overview

Use the download button to access the SX8651IWLTRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SX865, or try a keyword search, such as Other Telecom ICs
