SZESD7104MUTAG - onsemi

Description: SZESD7104MTWTAG Wettable Flank Package; Low ESD Clamping Voltage; SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Low Capacitance (0.3 pF Typical, I/O to GND); IEC61000−4−2 (ESD): Level 4

Download SZESD7104MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

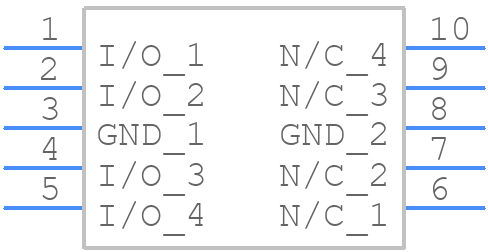

Symbol
SZESD7104MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
SZESD7104MUTAG - onsemi PCB footprint - Other - Other - SZESD7104MUTAG-3
click to zoom
3D Models
SZESD7104MUTAG - onsemi - 3D model - Other - SZESD7104MUTAG-3
click to zoom

SZESD7104MUTAG Details

  • Manufacturer Part Number:

    SZESD7104MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-10

  • Package Description:

    WUDFNW-10

  • Manufacturer Package Code:

    517BB

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    5.5 V

  • Case Connection:

    ANODE

  • Clamping Voltage-Max:

    10 V

  • Configuration:

    COMMON ANODE, 5 ELEMENTS, 5 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    5

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SZESD7104MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure the input voltage (VIN) is within the recommended range (2.7V to 5.5V). Use a stable voltage regulator and decouple the input with a 10uF capacitor. Also, ensure the output voltage (VOUT) is within the recommended range (1.2V to 3.6V).
  • The maximum output current capability of the SZESD7104MUTAG is 1.5A. However, it's recommended to derate the output current based on the ambient temperature and PCB thermal design.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range. Also, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The thermal derating curve for the SZESD7104MUTAG can be found in the datasheet. As a general guideline, the device can operate up to 125°C junction temperature, but the output current should be derated by 50% for every 10°C increase above 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SZESD7104MUTAG Overview

Use the download button to access the SZESD7104MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SZESD, or try a keyword search, such as Transient Suppressors
