SiT2024BM-S1-18E-25.000000 - SiTime

Description: Automotive AEC-Q100 SOT23 Oscillator

Download SiT2024BM-S1-18E-25.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

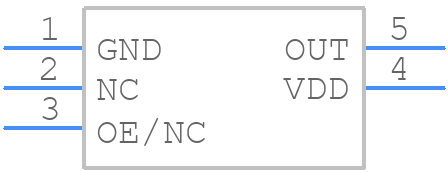

SiT2024BM-S1-18E-25.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT2024BM-S1-18E-25.000000 - SiTime PCB footprint - Other - Other - SOT-23_5pins
click to zoom
3D Models
SiT2024BM-S1-18E-25.000000 - SiTime - 3D model - Other - SOT-23_5pins
click to zoom

SiT2024BM-S1-18E-25.000000 Details

  • Manufacturer Part Number:

    SIT2024BM-S1-18E-25.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT23-5

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; LVTTL OUTPUT ALSO AVAILABLE

  • Fall Time-Max:

    2.5 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Output Low Current-Max:

    2 mA

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Physical Dimension:

    3.05mm x 1.75mm x 1.45mm

  • Rise Time-Max:

    2.5 ns

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

SiT2024BM-S1-18E-25.000000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guide in their application notes (AN10003) and on their website. It's essential to follow these guidelines to ensure optimal performance and minimize noise coupling.
  • The SIT2024BM-S1-18E-25.000000 has a fixed output frequency of 25.000000 MHz, which is set during manufacturing. No external configuration is required or possible.
  • The SIT2024BM-S1-18E-25.000000 has an operating temperature range of -40°C to +85°C, making it suitable for most commercial and industrial applications.
  • Yes, SiTime oscillators are designed and manufactured with high-reliability applications in mind. They undergo rigorous testing and are qualified to various industry standards, such as AEC-Q100 and MIL-STD-883.
  • The SIT2024BM-S1-18E-25.000000 has a CMOS output signal, which can be directly connected to most digital circuits. However, it's essential to ensure proper signal termination and routing to minimize signal degradation and noise coupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT2024BM-S1-18E-25.000000 Overview

Use the download button to access the SiT2024BM-S1-18E-25.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT20, or try a keyword search, such as XO
