Part Image

T20F256C3 - Efinix

Description: IC FPGA TRION T20 195 IO 256FBGA

Download T20F256C3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T20F256C3 - Efinix - PCB symbol
click to zoom
PCB Footprints

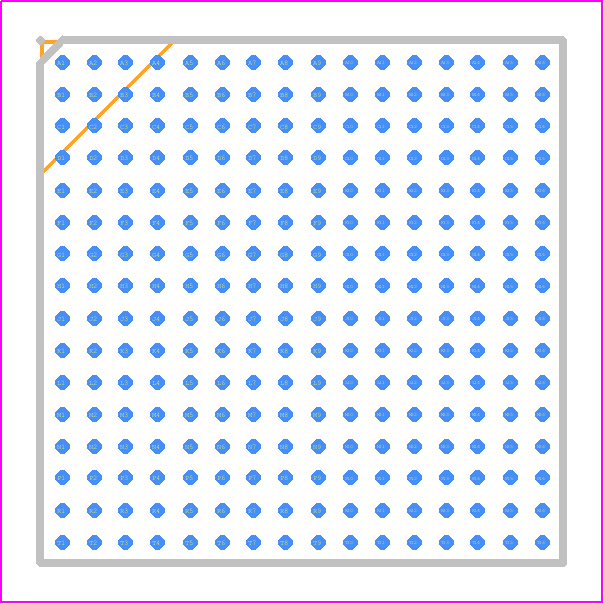

T20F256C3 - Efinix PCB footprint - BGA - BGA - 256-Ball FBGA
click to zoom
3D Models
T20F256C3 - Efinix - 3D model - BGA - 256-Ball FBGA
click to zoom

T20F256C3 Details

  • Manufacturer Part Number:

    T20F256C3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    FBGA-256

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    EFINIX

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    195

  • Number of Logic Cells:

    19728

  • Number of Outputs:

    195

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    SMIC

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

T20F256C3 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the T20F256C3 is 100 MHz, but it can be overclocked to 150 MHz with careful design and testing.
  • The T20F256C3 has a built-in DDR3 PHY, but it requires a custom IP core to be implemented. EFINIX provides a DDR3 IP core in their Efinity Integrated Development Environment (IDE) that can be used to implement a DDR3 memory interface.
  • The T20F256C3 is not radiation-hardened and is not suitable for use in space or high-radiation environments. EFINIX does not provide any radiation-hardened FPGAs.
  • The T20F256C3 has a built-in AES-256 encryption engine that can be used to encrypt the FPGA configuration data. Additionally, EFINIX provides a secure boot mechanism that can be used to authenticate the FPGA configuration data.
  • The T20F256C3 is rated for operation up to 85°C, but it can be operated at higher temperatures with derating. However, it is not recommended to operate the device above 100°C without careful thermal management and testing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T20F256C3 Overview

Use the download button to access the T20F256C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T20F2, or try a keyword search, such as Field Programmable Gate Arrays
