The maximum operating frequency of the T20F256C4 is 100 MHz, but it can be overclocked to 150 MHz with careful design and layout considerations.
The T20F256C4 has a dedicated DDR3/DDR3L memory interface, which can be implemented using the FPGA's built-in DDR3 PHY and memory controller. Refer to the EFINIX DDR3 Memory Interface User Guide for implementation details.
The T20F256C4 is not radiation-hardened, and its performance and reliability may be affected in radiation-intensive environments. However, EFINIX offers radiation-hardened versions of the FPGA, such as the T20F256CR, which is designed for space and high-reliability applications.
The T20F256C4 has built-in security features, including a secure boot mechanism, encrypted bitstream storage, and a hardware-based root of trust. Additionally, EFINIX provides a Secure Development Environment (SDE) to help designers protect their IP and prevent unauthorized access.
The power consumption of the T20F256C4 depends on the specific design and operating conditions. However, EFINIX provides power estimation tools and guidelines to help designers optimize power consumption. Additionally, the FPGA has built-in power management features, such as dynamic voltage and frequency scaling, to reduce power consumption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T20F256C4 Overview

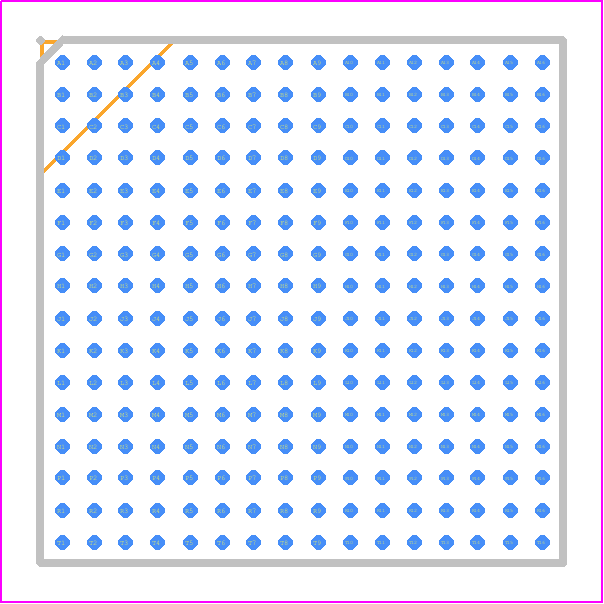

Use the download button to access the T20F256C4 schematic symbol, PCB footprint, and 3D model.
