The maximum frequency of the T20F256I4 is 200 MHz, but it can be overclocked to 250 MHz with careful design and layout considerations.
The T20F256I4 has a dedicated DDR3/DDR3L interface, which can be implemented using the FPGA's built-in DDR3/DDR3L PHY. Refer to the EFINIX DDR3/DDR3L IP core documentation for implementation details.
Yes, the T20F256I4 is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems. It has undergone rigorous testing and meets various industry standards for reliability and quality.
The T20F256I4 has built-in security features, including a secure boot mechanism, encrypted bitstream storage, and a hardware-based root of trust. Additionally, EFINIX provides a secure development environment and tools to help protect your design.
The power consumption of the T20F256I4 depends on the specific application and usage. However, the typical power consumption is around 1.5W at 200 MHz, and it can be optimized using power-saving features and design techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T20F256I4 Overview

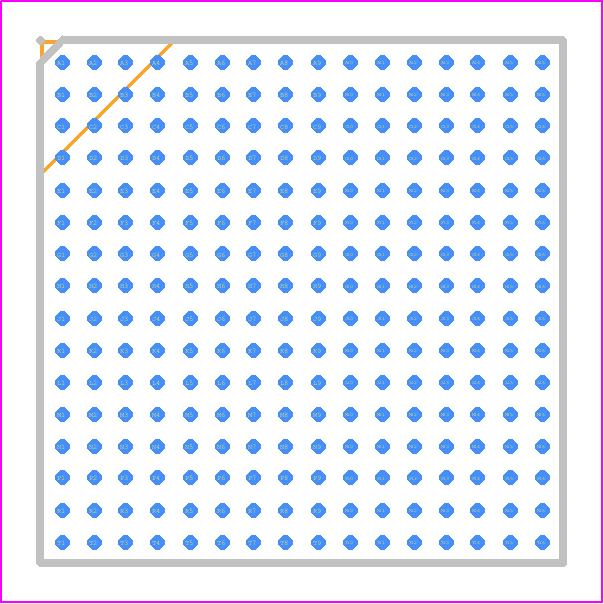

Use the download button to access the T20F256I4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T20F2,
or try a keyword search, such as Field Programmable Gate Arrays
