T35F400C3 - Efinix

Description: IC FPGA TRION T35 230 IO 400FBGA

Download T35F400C3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

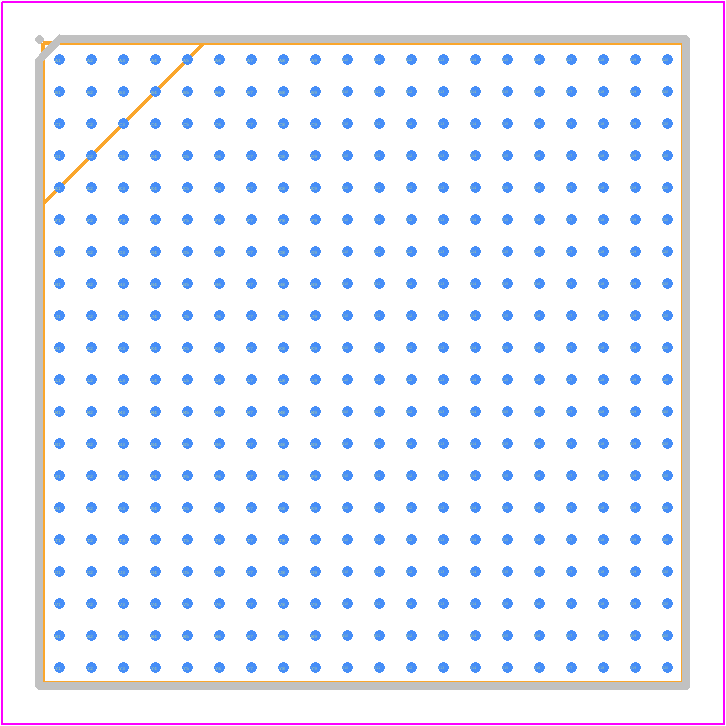

T35F400C3 - Efinix PCB footprint - BGA - BGA - 400-Ball FBGA
click to zoom
3D Models
T35F400C3 - Efinix  - 3D model - BGA - 400-Ball FBGA
click to zoom

T35F400C3 Details

  • Manufacturer Part Number:

    T35F400C3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    FBGA-400

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    EFINIX

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    230

  • Number of Logic Cells:

    31680

  • Number of Outputs:

    230

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    SMIC

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

T35F400C3 Frequently Asked Questions (FAQs)

  • EFINIX recommends a 4-layer or 6-layer PCB stackup with a minimum of 1 oz copper thickness. For signal integrity, it's essential to follow the datasheet's guidelines for signal routing, especially for high-speed interfaces like PCIe and DDR. Additionally, using a solid ground plane and decoupling capacitors can help reduce noise and improve signal quality.
  • To optimize power consumption, use the EFINIX's Power Estimator tool to estimate power consumption based on your design. Implement power-gating, clock-gating, and dynamic voltage and frequency scaling (DVFS) techniques. Also, consider using the lowest possible voltage and frequency for your design, and use the built-in power management features like the Power Management Unit (PMU).
  • To secure the T35F400C3, use the built-in security features like the Secure Boot mechanism, which ensures that only authorized firmware can be loaded. Implement encryption and decryption mechanisms for sensitive data, and use secure protocols for communication. Additionally, follow best practices for secure coding, and use access control mechanisms to limit access to sensitive areas of the design.
  • EFINIX provides a range of debugging tools, including the EFINIX Debugger, which allows you to debug and troubleshoot issues with the FPGA. Use the built-in logic analyzer and signal tap features to capture and analyze signals. Additionally, use the EFINIX's SDK and development boards to test and validate your design before moving to production.
  • The T35F400C3 has a maximum junction temperature of 100°C. To manage thermal issues, ensure good airflow around the device, and use a heat sink or thermal interface material if necessary. Monitor the device's temperature using the built-in thermal sensors, and implement thermal throttling or shutdown mechanisms to prevent overheating.
