EFINIX recommends a 4-6 layer PCB stackup with a minimum of two power planes and two signal layers. A 3.3V power plane should be dedicated to the FPGA core, and a separate power plane for the I/O banks. Additionally, a solid ground plane is recommended to reduce noise and improve signal integrity.
To optimize power consumption, use the EFINIX Power Analyzer tool to estimate power consumption based on your design. Then, implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, consider using the FPGA's built-in power management features, such as the Power Management Unit (PMU).
To ensure reliable and efficient DDR memory interfaces, follow EFINIX's guidelines for DDR interface implementation, including using the recommended DDR PHY IP, implementing proper signal termination, and ensuring correct clock domain crossing. Additionally, use the FPGA's built-in DDR calibration and training features to optimize memory performance.
To ensure secure boot and firmware authentication, use the FPGA's built-in security features, such as the Secure Boot mechanism and the Advanced Encryption Standard (AES) engine. Implement a secure boot process that authenticates the firmware using digital signatures and encryption. Additionally, consider using a secure firmware storage solution, such as a secure boot flash.
When using the T55F324C3 in high-reliability or high-temperature applications, consider the FPGA's operating temperature range (-40°C to 100°C) and ensure that the design meets the recommended operating conditions. Additionally, follow EFINIX's guidelines for high-reliability design, including using redundant logic, implementing error correction, and ensuring proper thermal management.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T55F324C3 Overview

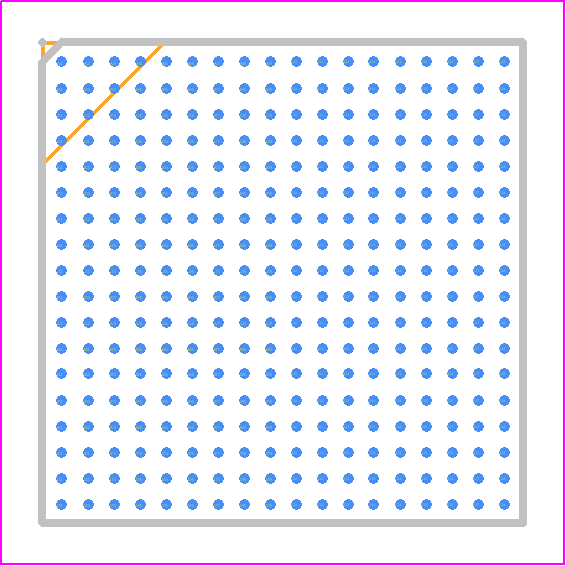

Use the download button to access the T55F324C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T55F3,
or try a keyword search, such as Field Programmable Gate Arrays
