EFINIX provides a PCB design guide and layout recommendations in their application notes and design resources. It's essential to follow these guidelines to ensure optimal signal integrity, especially for high-speed interfaces like PCIe and DDR.
To optimize power consumption, use the EFINIX Power Analyzer tool to estimate power consumption based on your design's activity factors. Then, apply power-saving techniques like clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
Implement a secure boot process using the EFINIX Secure Boot feature, which ensures that only authorized firmware can be loaded onto the device. Additionally, use encryption and secure key storage, and consider implementing a secure communication protocol like SSL/TLS.
Use the EFINIX ChipScope Pro tool for debugging and troubleshooting. This tool provides real-time visibility into the FPGA's internal signals, allowing you to identify and fix issues quickly. You can also use the built-in logic analyzer and signal tap features.
The T55F324I4 has a maximum junction temperature of 100°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to dissipate heat. Monitor the device's temperature using the built-in thermal sensor and adjust your design accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T55F324I4 Overview

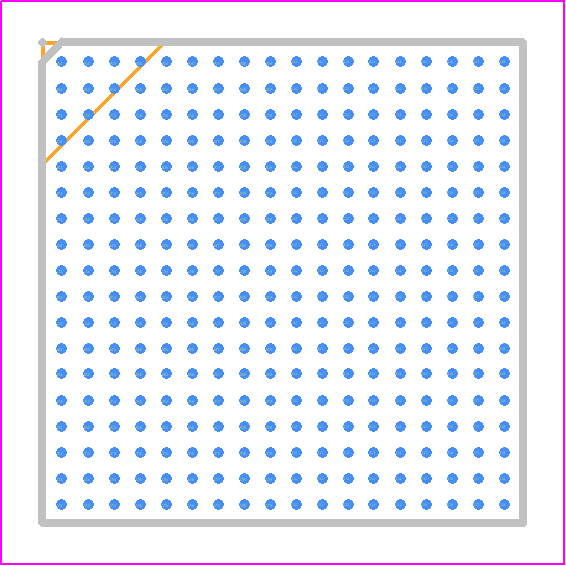

Use the download button to access the T55F324I4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T55F3,
or try a keyword search, such as Field Programmable Gate Arrays
