TA07-11CGKWA - Kingbright

Description: Kingbright TA07-11CGKWA Dot Matrix LED Display, CA 7 x 5 Dot Matrix Green 38 mcd 17.6mm

Download TA07-11CGKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TA07-11CGKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

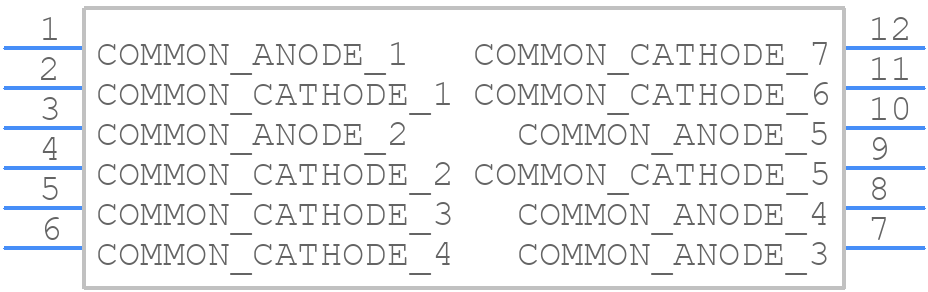

TA07-11CGKWA - Kingbright - PCB symbol

PCB Footprints

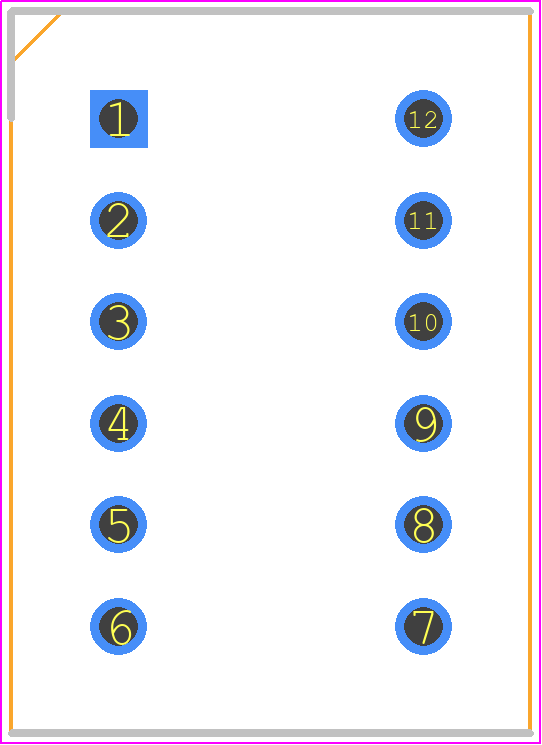

TA07-11CGKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - TA07-11CGKWA

3D Models

TA07-11CGKWA - Kingbright - 3D model - Dual-In-Line Sockets - TA07-11CGKWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for TA07-11CGKWA
Part Number TA07-11CGKWA
Manufacturer Kingbright
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - TA07-11CGKWA
Released Date Jul 20, 2019
Last Modified Date Dec 6, 2023 9:49 AM UTC
Pinout / Pin List Click Here (Member Only)

TA07-11CGKWA Details

Manufacturer Part Number:
TA07-11CGKWA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-12
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6.1
Color:
GREEN
Color@Wavelength:
Green-yellow
Configuration:
COMMON CATHODE, 1 DIGIT
Display Height:
17.78 mm
Forward Current-Max:
0.03 A
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
5 X 7 DOT MATRIX LED DISPLAY

TA07-11CGKWA Frequently Asked Questions (FAQs)

The recommended storage temperature range for the TA07-11CGKWA is -20°C to 40°C.
Yes, the TA07-11CGKWA can be used in outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
The maximum soldering temperature for the TA07-11CGKWA is 260°C for 3 seconds.
Yes, the TA07-11CGKWA is compatible with lead-free soldering processes.
The typical viewing angle for the TA07-11CGKWA is 120°.
