A good PCB layout for the TAS2555YZT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize the TAS2555YZT for low noise and distortion, use a low-ESR capacitor for the power supply, keep the analog and digital grounds separate, and use a shielded cable for the audio input. Additionally, ensure the device is operated within its recommended operating conditions.
The TAS2555YZT can handle up to 2.5 W of power per channel. However, the actual power handling capability depends on the load impedance, supply voltage, and ambient temperature. Refer to the datasheet for more information on power handling and thermal considerations.
The TAS2555YZT supports various audio formats, including I2S, PCM, and DSP. To configure the device for a specific audio format, refer to the datasheet and application notes for register settings and configuration details.
The TAS2555YZT has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as using a heat sink or thermal pad, to keep the device within its recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2555YZT Overview

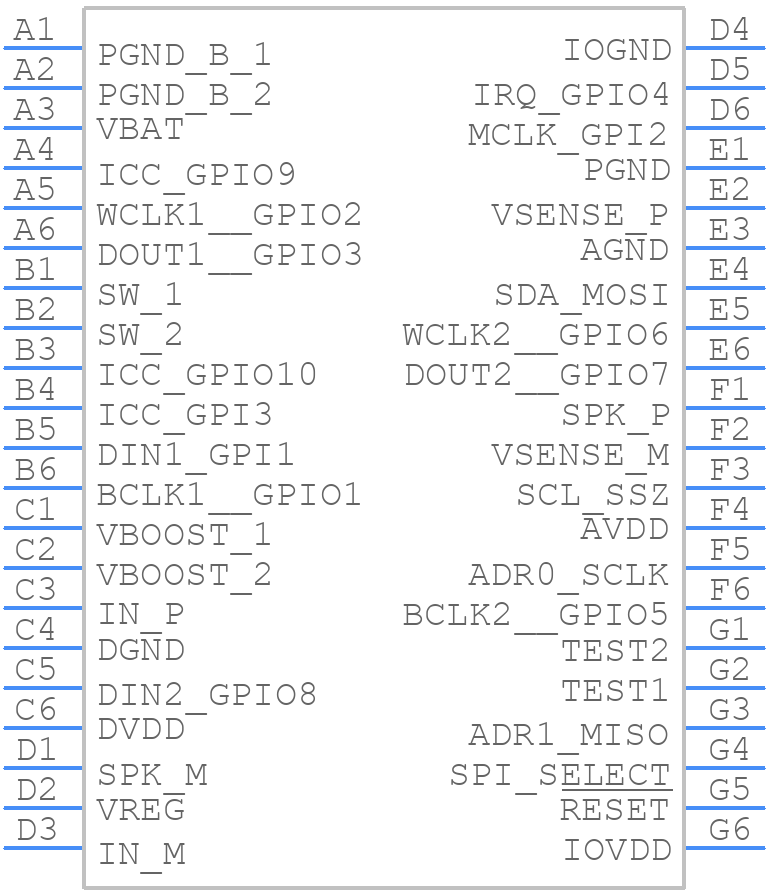

Use the download button to access the TAS2555YZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
