Texas Instruments provides a recommended PCB layout in the TAS2559YZR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS2559YZR for low noise and high fidelity audio, use a high-quality power supply, decouple the power pins with capacitors, and use a low-noise voltage regulator. Additionally, ensure that the analog and digital grounds are separated and connected at a single point to minimize noise coupling.
The TAS2559YZR is a 10-W class-D audio amplifier, and its maximum power handling capability depends on the supply voltage, output impedance, and thermal management. According to the datasheet, the device can deliver up to 10 W of continuous power into a 4-ohm load with a 12-V supply voltage.
The TAS2559YZR can be configured for different audio modes by adjusting the pin connections and external component values. For example, to configure the device for stereo mode, connect the left and right channel inputs to separate pins, and use separate output filters for each channel. Refer to the datasheet and application notes for specific configuration guidelines.
The TAS2559YZR is a high-power device that requires proper thermal management to prevent overheating. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines to minimize thermal resistance. Monitor the device temperature and adjust the thermal management strategy accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2559YZR Overview

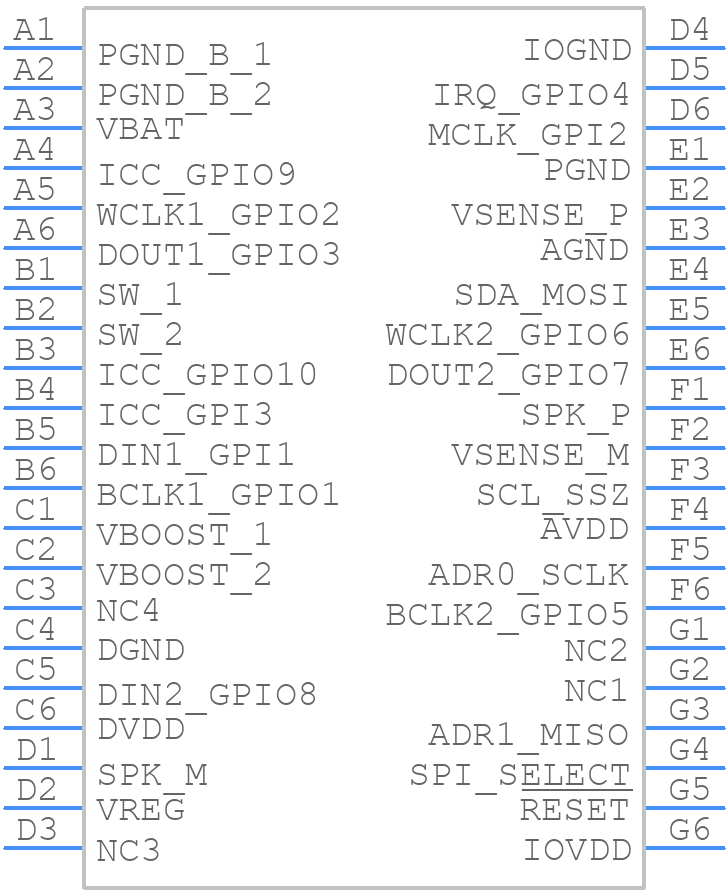

Use the download button to access the TAS2559YZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
