A good PCB layout for the TAS5086DBTR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the TAS5086DBTR for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current to the minimum required for the application. Additionally, use a low-dropout regulator (LDO) to power the device, and consider using a power-saving mode or shutdown mode when not in use.
The TAS5086DBTR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink. Ensure good airflow around the device and avoid blocking the airflow with components or obstacles.
To troubleshoot issues with the TAS5086DBTR, start by verifying the power supply voltage, clock frequency, and input signals. Check for proper termination and impedance matching. Use an oscilloscope to analyze the output signals and verify that they meet the expected specifications. Consult the datasheet and application notes for specific troubleshooting guidelines.
To minimize EMI and EMC issues with the TAS5086DBTR, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use a common-mode choke or ferrite bead to filter the power supply lines. Ensure good grounding and shielding of the PCB, and consider using EMI-absorbing materials or shielding cans.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5086DBTR Overview

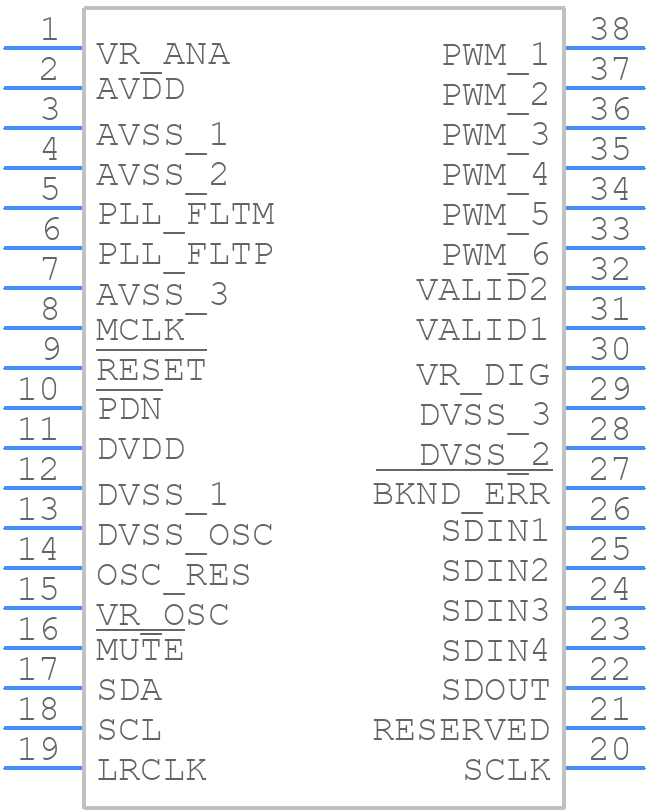

Use the download button to access the TAS5086DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS50,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
