SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
10 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5103DAPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5103DAPR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The TAS5103DAPR supports various audio formats, including I2S, PCM, and SPDIF. Configuration is done through the device's control registers, which can be accessed via the I2C or SPI interface. Refer to the datasheet and application notes for specific register settings and configuration examples.
The maximum power dissipation of the TAS5103DAPR is dependent on the operating conditions, such as supply voltage, output power, and ambient temperature. According to the datasheet, the maximum power dissipation is approximately 3.5W. However, it's essential to perform thermal analysis and design a suitable heat sink to ensure reliable operation.
Yes, the TAS5103DAPR is a pulse-width modulation (PWM) controller designed for class-D audio amplifiers. It provides the necessary control signals for the power stage, and its built-in protection features, such as overcurrent and undervoltage protection, make it suitable for class-D amplifier designs.
The TAS5103DAPR has built-in fault detection and protection features, including overcurrent, undervoltage, and overtemperature protection. Additionally, you can implement external fault detection and protection circuits, such as voltage monitoring and current sensing, to ensure reliable operation and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5103DAPR Overview

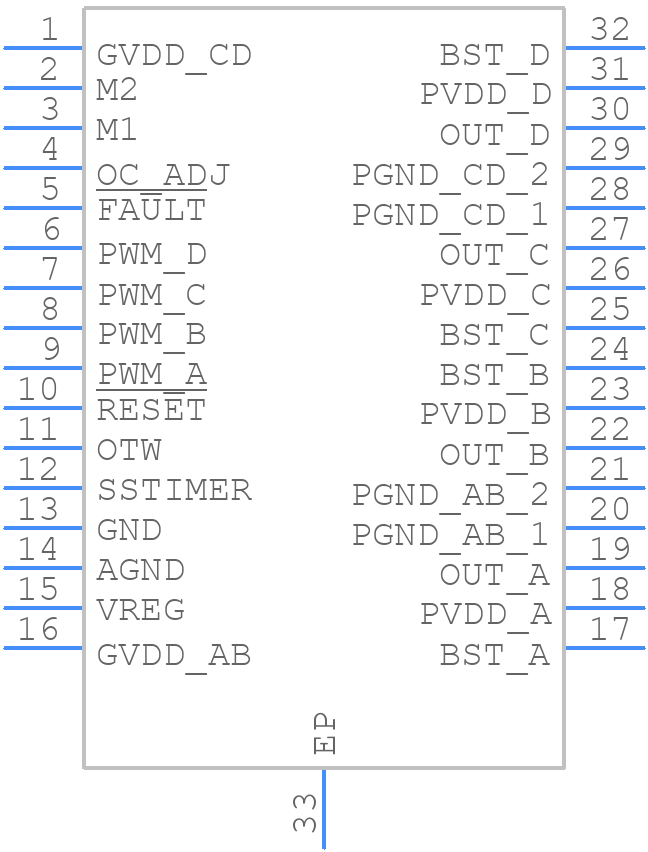

Use the download button to access the TAS5103DAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
