SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
27 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5111ADAD Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5111ADAD evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5111ADAD for low power consumption, ensure that the device is operated at the lowest possible supply voltage (VCC) while maintaining the required output power. Additionally, use the device's built-in power-saving features, such as the auto-mute function, and optimize the clock frequency and digital interface settings.
The maximum allowed ambient temperature for the TAS5111ADAD is 85°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliable operation and to prevent thermal shutdown.
To troubleshoot audio distortion or noise issues with the TAS5111ADAD, check the device's power supply, clock frequency, and digital interface settings. Ensure that the device is properly decoupled, and the output filter is correctly designed and implemented. Additionally, verify that the input audio signal is within the recommended specifications and that the device is not overheating.
Yes, the TAS5111ADAD is a pulse-width modulation (PWM) controller designed for use in class-D audio amplifiers. It provides the necessary control signals for the power stage and can be used in a variety of class-D amplifier topologies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5111ADAD Overview

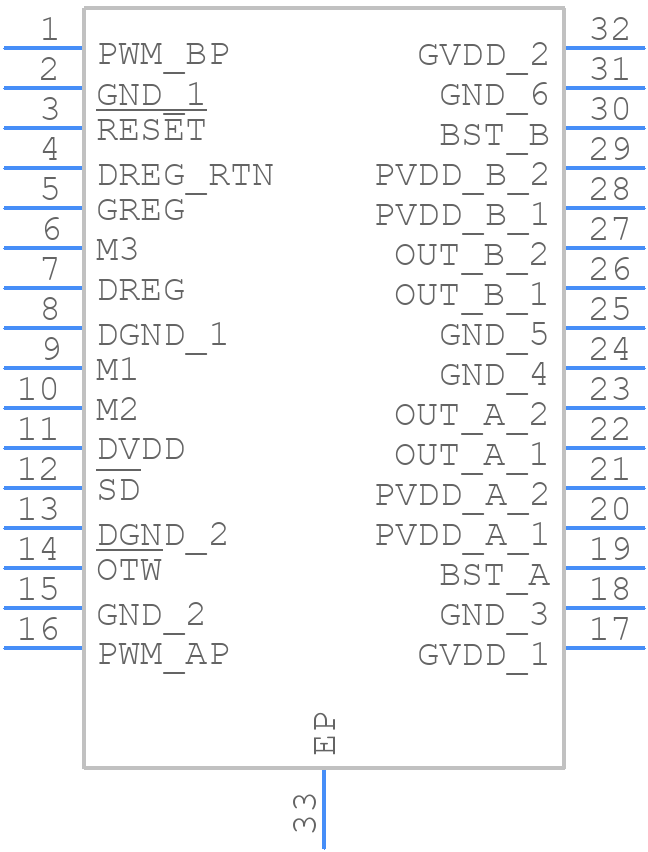

Use the download button to access the TAS5111ADAD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
