SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
27 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5111ADADR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5111ADADR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5111ADADR for low power consumption, ensure that the device is operated within the recommended voltage range (1.8V to 3.6V), use the lowest possible clock frequency, and disable any unused features. Additionally, consider using the device's power-saving modes, such as the low-power standby mode or the shutdown mode, when the device is not in use.
The maximum allowed output current for the TAS5111ADADR is 2.5A per channel. However, it's essential to consider the device's thermal limitations and ensure that the output current does not exceed the maximum allowed current for the given ambient temperature and thermal resistance.
To troubleshoot audio distortion or noise issues with the TAS5111ADADR, check the device's power supply, clock frequency, and output filter configuration. Ensure that the power supply is stable and within the recommended range, and that the clock frequency is accurate and jitter-free. Also, verify that the output filter is properly configured and that the device is not overheating.
Yes, the TAS5111ADADR can be used with a different clock source, such as a ceramic resonator or an external clock signal. However, it's essential to ensure that the clock source meets the device's clock frequency and jitter requirements, and that the clock signal is properly buffered and filtered to minimize noise and distortion.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5111ADADR Overview

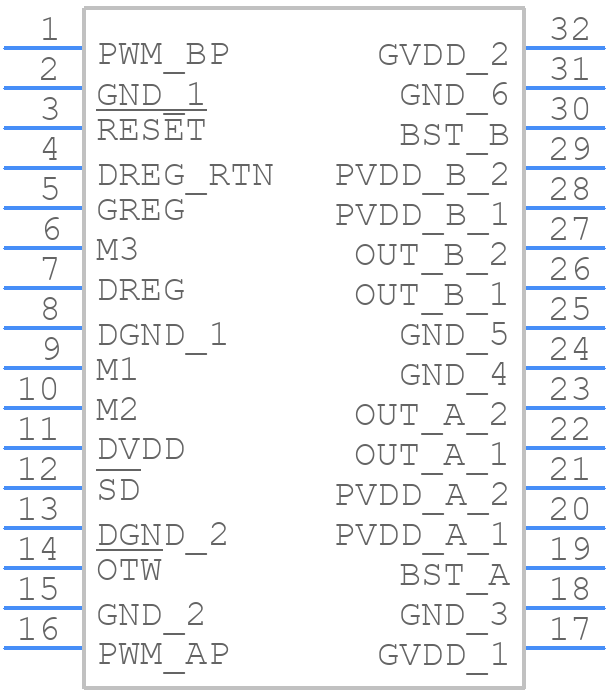

Use the download button to access the TAS5111ADADR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
