TAS5162DDV - Texas Instruments

Description: 210-W Stereo Digital Amplifier Power Stage

Download TAS5162DDV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

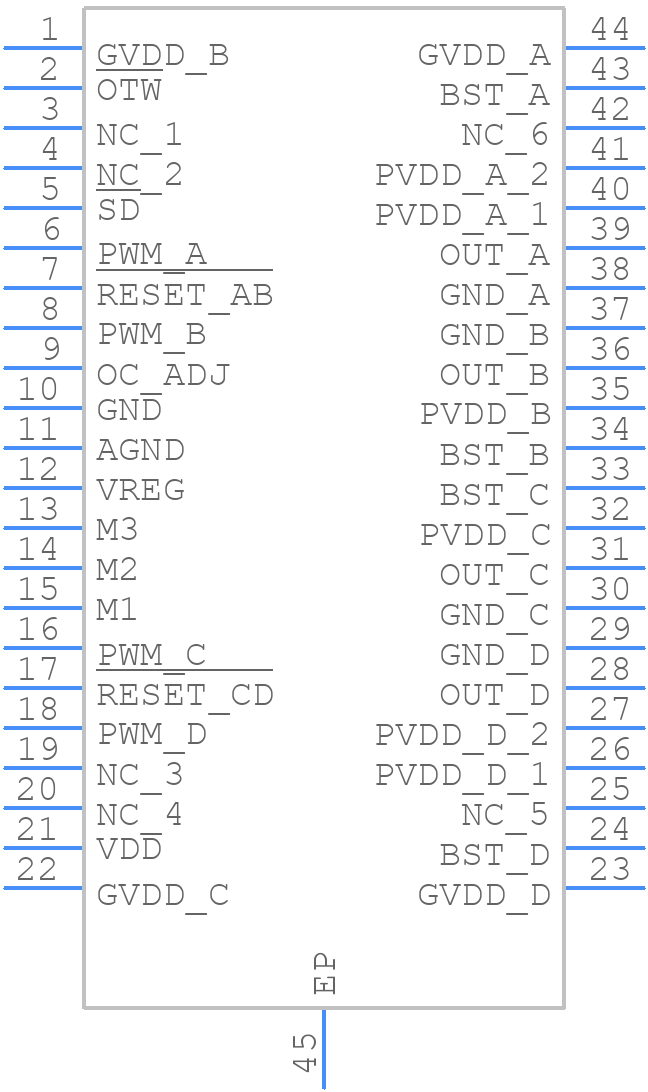

TAS5162DDV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

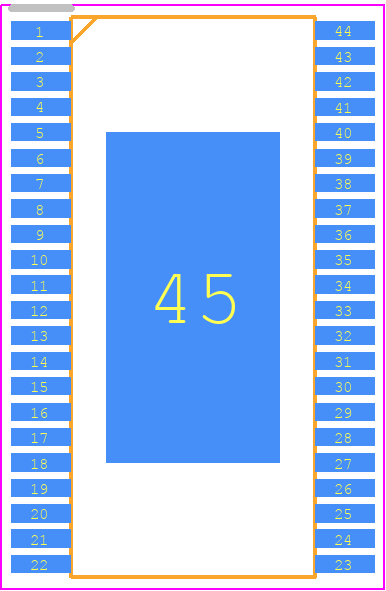

TAS5162DDV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDV (R-PDSO-G44)
click to zoom
3D Models
TAS5162DDV - Texas Instruments - 3D model - Small Outline Packages - DDV (R-PDSO-G44)
click to zoom

TAS5162DDV Details

  • Manufacturer Part Number:

    TAS5162DDV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 50 V SUPPLY
