SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5162DDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5162DDVR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5162DDVR for low noise and high efficiency, ensure proper component selection, such as using low-ESR capacitors and a high-quality inductor. Additionally, optimize the PCB layout, use a low-noise voltage regulator, and implement a proper thermal management system. Texas Instruments also provides application notes and design guides to help with optimization.
The TAS5162DDVR has an operating temperature range of -40°C to 85°C, but it's essential to consider the junction temperature (TJ) when designing the system. The maximum TJ is 150°C, and the device should be designed to operate within a safe temperature margin to ensure reliability and longevity.
To protect the TAS5162DDVR from overvoltage and undervoltage conditions, use a voltage supervisor or a power-on reset (POR) circuit to monitor the input voltage and ensure it remains within the recommended operating range. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
The recommended input capacitor value and type for the TAS5162DDVR depend on the specific application and operating conditions. However, as a general guideline, use a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are suitable options.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5162DDVR Overview

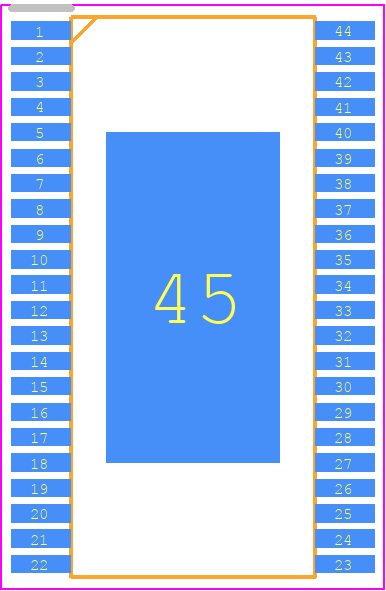

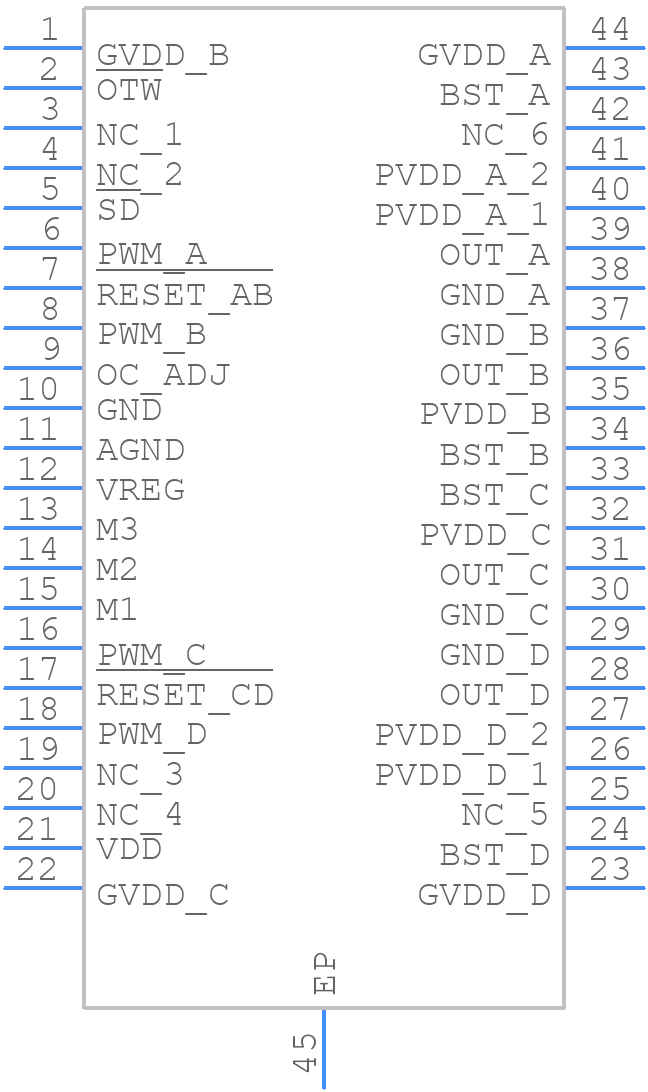

Use the download button to access the TAS5162DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
